ITT Dispersion Blade

SKU BLR020 Category Dispersion Blades
$122.00
0/5

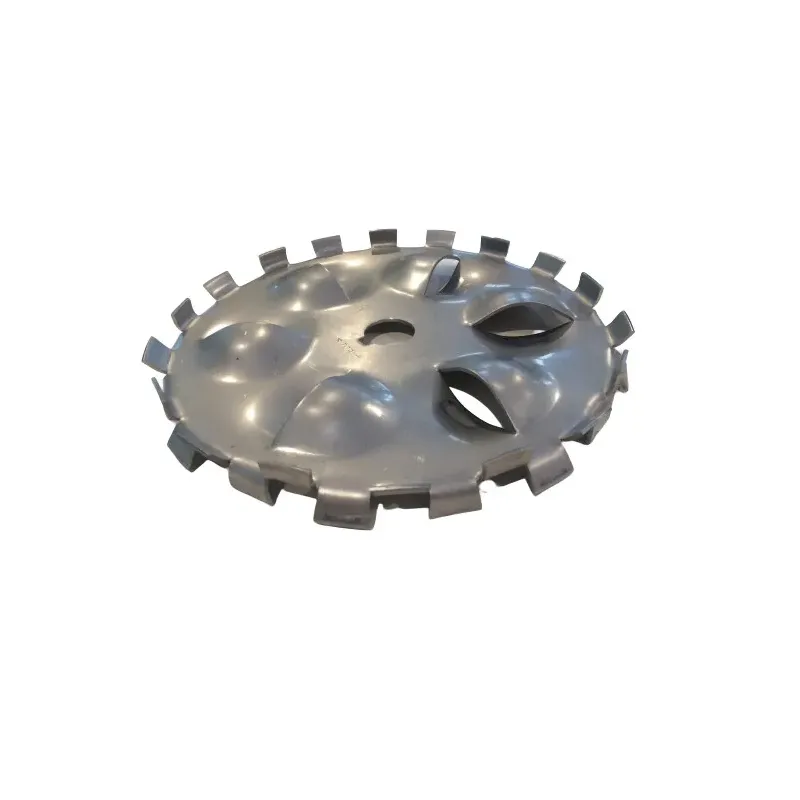

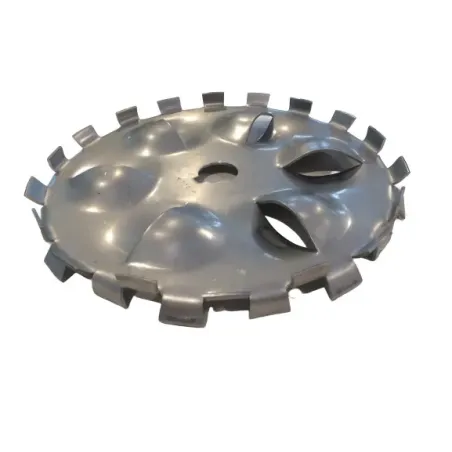

The Conn ITT (Intensive Type with Teeth), Type R, for high shear and agitation; Good material movement; Useful where high shear is required for a rapid and smooth blend or when high shear is not required but is not detrimental. This dispersion blade has vents or louvers used to introduce additional pumping action.

Please note SIZE is not the actual blade diameter.  See table below for measurement

MODEL BLR020
CONN Size
$122.00
Request Pricing / Info
close

Request Pricing / Info



The Conn ITT (Intensive Type with Teeth), Type R, for high shear and agitation; Good material movement; Good combination where high shear is required for a rapid and smooth blend or when high shear is not required but is not detrimental. This dispersion blade has vents or louvers used to introduce additional pumping action.

Contact us if you require an exact measurement of diameter.

CONN ITT Blade (Style R)
Size Diameter Clear Diameter Size Diameter Clear Diameter
2 2⅜" 1" 18 20¾" 7¾"
3 3⅜" 1 ⅟16" 20 22" 5½"
4 4⅜" 1⅜" 22 24½" 7½"
5 6" 1¾" 24 27" 9½"
6 7¼" 2⅛" 26 29½" 11½"
7 8" 3¼" 28 32" 13½"
8 9¼" 3¼" 30 34¼" 15½"
9 10⅜" 3¼" 32 36" 17½"
10 11½" 3⅜" 34 38" 19½"
11 12½" 4¼" 36 40" 21½"
12 13⅝" 5" 38 42" 23½"
13 14⅞" 6" 40 44" 25½"
14 16" 5½" 42 46" 27½"
16 18¼" 5¾" 44 48" 29½"

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.
