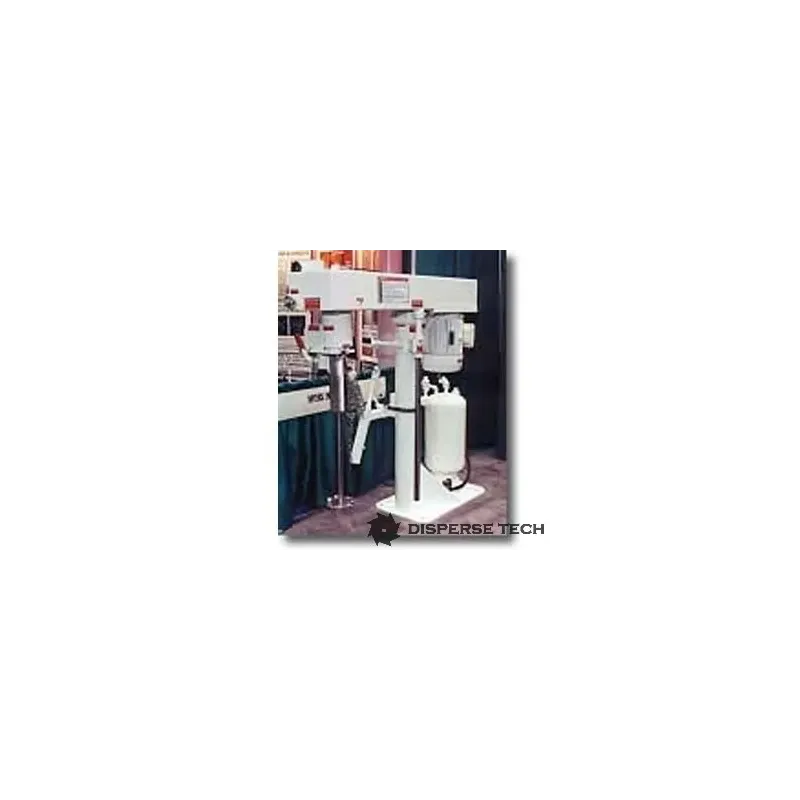

Low to Medium Viscosities 5-25 H.P. Economic single shaft disperser. Simple and sturdy, this unit is widely used for small to medium size batches. All lubrication points are externally accessible to simplify maintenance.

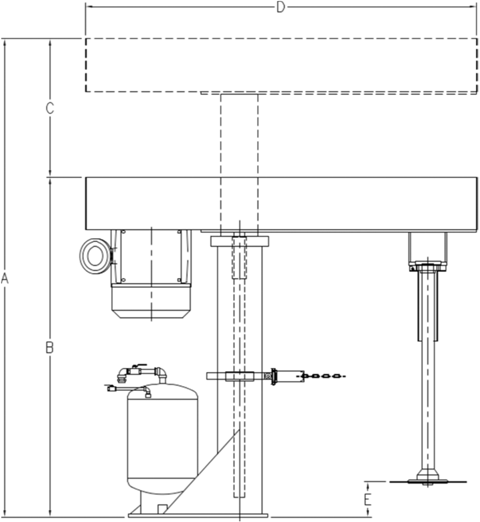

Standard Models and Dimensions
 | Model | HP | A | B | C | D | E |
---|
775-5 | 5 | 99 | 61 | 38 | 54 | 4 | 775-7.5 | 7.5 | 99 | 61 | 28 | 54 | 4 | 775-10 | 10 | 122 | 74 | 48 | 87.5 | 9 | 775-15 | 15 | 122 | 74 | 48 | 87.5 | 9 | 775-20 | 20 | 122 | 74 | 48 | 87.5 | 9 | 775-25 | 25 | 122 | 74 | 48 | 87.5 | 9 |
* Dimensions A,B,C,D,& E are in inches |
Large Diameter Air over Oil Hydraulic Cylinder provides smooth raising and lowering.
