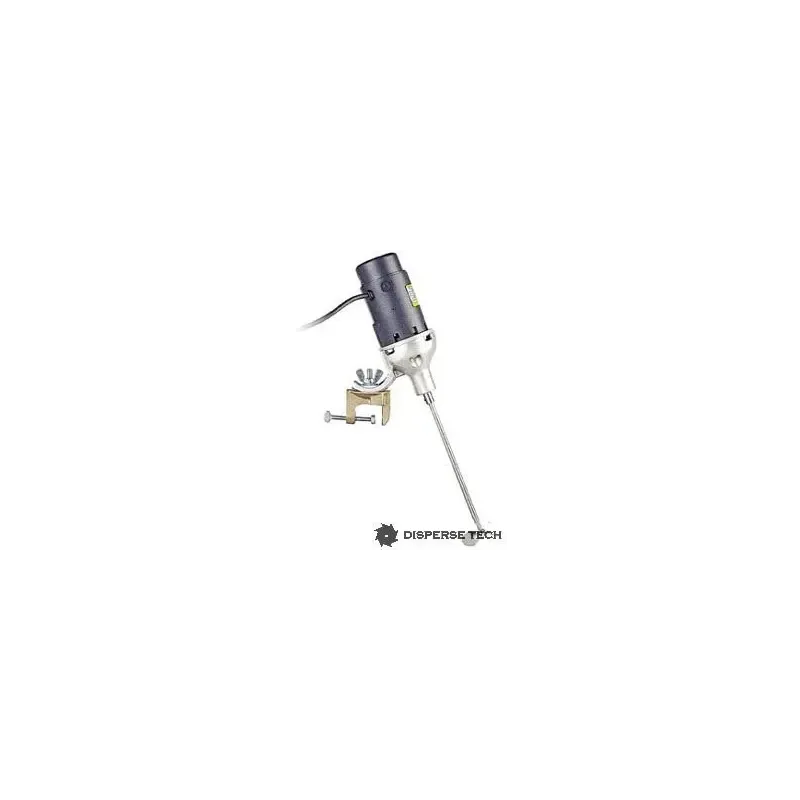

MixMor LD Laboratory Mixers are available in both electric and air Driven configurations. Mixers come standard with 3/8" x 12" 316 S/S shaft and 2" prop.
MixMor LD Laboratory Mixers are available in both electric and air Driven configurations. Mixers come standard with 3/8" x 12" 316 S/S shaft and 2" prop.
SPECIFICATIONS
Model | Power Source | Enclosure | Mixer | Shaft | Impeller Diameter | weight | |
---|---|---|---|---|---|---|---|
hp | rpm | Single | |||||
LD-20 | 115 Volt,1φ,60hz | TEFC | 1/20 | 1600 | 3/8" x 12" | 2" | 8.5 |
LDA-60 | 40 psi, 7 cfm | - | 1/6 | 500-6000 | 3/8" x 12" | 2" | 5.5 |
LDV-10 | 115 Volt,1φ,60hz | Open | 1/10 | 500-5000 | 3/8" x 12" | 2" | 9.5 |
