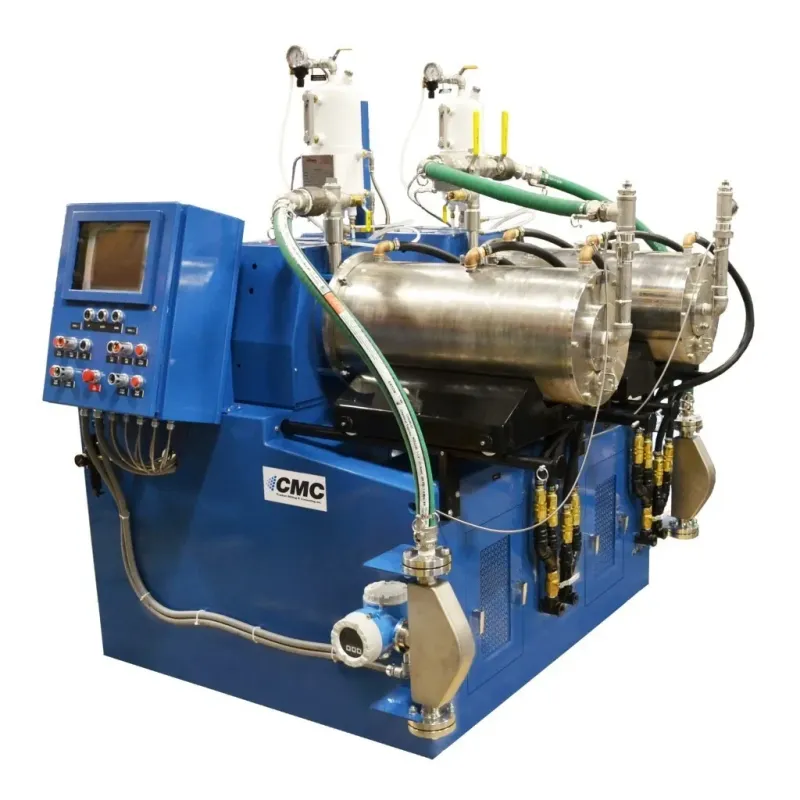

CMC Duplex Supermill Plus
New product
The Duplex Supermill Plus® media mill is designed with two horizontal chambers on one common frame. The product passes through the first chamber and directly into the second chamber without the need of a surge tank or separate feed pump.
More info
The Duplex Supermill Plus® media mill is designed with two horizontal chambers on one common frame. The product passes through the first chamber and directly into the second chamber without the need of a surge tank or separate feed pump. Typically, larger media is charged in the first chamber and finer media in the second chamber. This enables two stages of grinding in one continuous pass. CMC’s Duplex Supermill Plus® can also be configured to work as two separate horizontal media mills.
Models:
| Models | Batch Size Gallons | Main Motor (HP) | Length | Length w/ Chamber Open | Width | Height | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| SMP-45II | 200-600 | 50/60 | 76.75" | 108.5" | 62" | 81" | 6,200 |
| SMP-60II | 300-1000 | 60/75 | 78.5" | 119.75" | 81" | 83.25" | 8,200 |
| SMP-90II | 400-1200 | 75/100 | 82.25" | 123.75" | 81" | 83.25" | 8,600 |
| SMP-120II | 600-3000 | 100/125 | 98.75" | 154.5" | 87.5" | 90" | 10,800 |
| SMP-200II | 1000-5000 | 125/150 | 106.75" | 161.5" | 87.5" | 90" | 11,400 |
