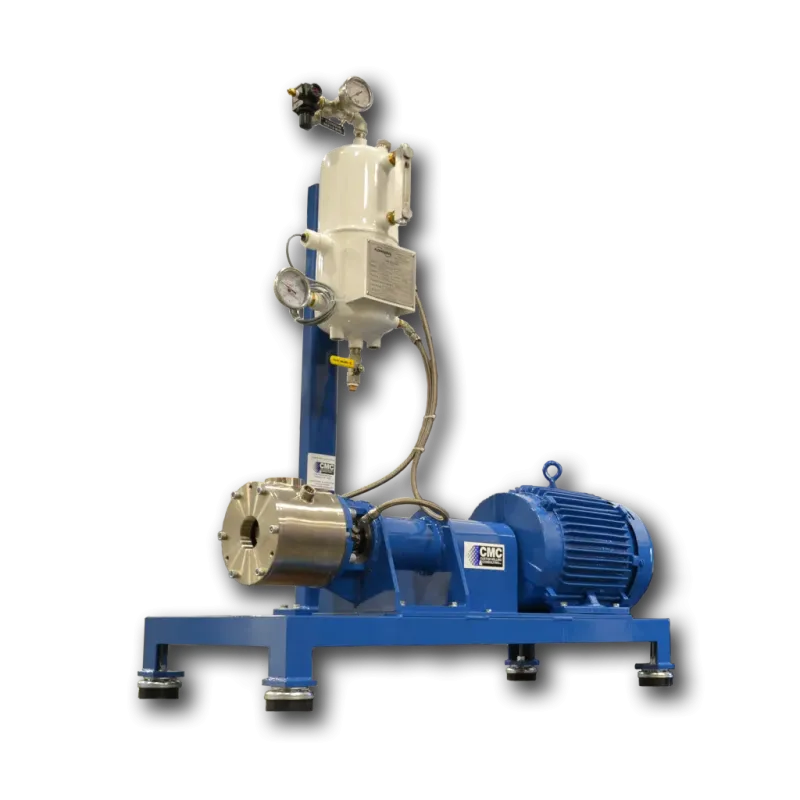

    SHRED In-Line Rotor Stator

    $0.00

    The SHRED In-line Rotor Stator is a small compact machine that can be completely portable and can make a great impact on your production. Many products need to be premixed before they are fed through a media mill. This self-pumping high shear mixer reduces hard-to-wet materials producing quality premixes that make the processing downstream much more efficient.

    Quantity

    The Shred in-line rotor stator offers powerful pumping action and maximum shear performance making it ideal for emulsifying a wide range of wet products. This self-pumping portable unit features rotor/stator based technology with multiple stator configurations. SHRED, (Shear, Homogenize, Reduce, Emulsify, Disperse) was designed to create homogeneous blends by shearing particles and dispersing them in a liquid vehicle. As the particles are fed through the small chamber they are pushed through the close tolerances of the rotor/stator and this intense mechanical shear forces the particles to break down. The close tolerance between the rotor and stator creates a shearing action that makes it possible to emulsify the liquids/liquid formulations.

    The SHRED device is a small compact machine that can be completely portable and can make a great impact on your production. Many products need to be premixed before they are fed through a media mill. This self-pumping high shear mixer reduces hard-to-wet materials producing quality premixes that make the processing downstream much more efficient.

    ModelsHi-Flow Recirc Flow Rate Range (Gal. per Minute)Main Motor (HP)Inlet & Outlet Ports (FPT)WidthLengthHeight
    SHRED-420 to 100102"20"43"49.5"
    SHRED-630 to 150202.5"20"43"49.5"
    SHRED-840 to 200253"25"65"49.5"
    Shred

    Download

    CMC Shred In-line Rotor Stator

    Custom Milling & Consulting Inc.’s line of high shear mixers offer powerful pumping action and maximum shear performance making them ideal for processing a wide range of wet products. This self-pumping portable unit features rotor/stator based technology with multiple stator confi gurations. SHRED was designed to create liquid/liquid or liquid/powder blends by shearing down particles and dispersing them in a liquid vehicle. As the particles are fed through the small chamber they are pushed through the close tolerances of the rotor/stator and this intense mechanical shear forces the particles to break down.

    Download (348.83KB)
