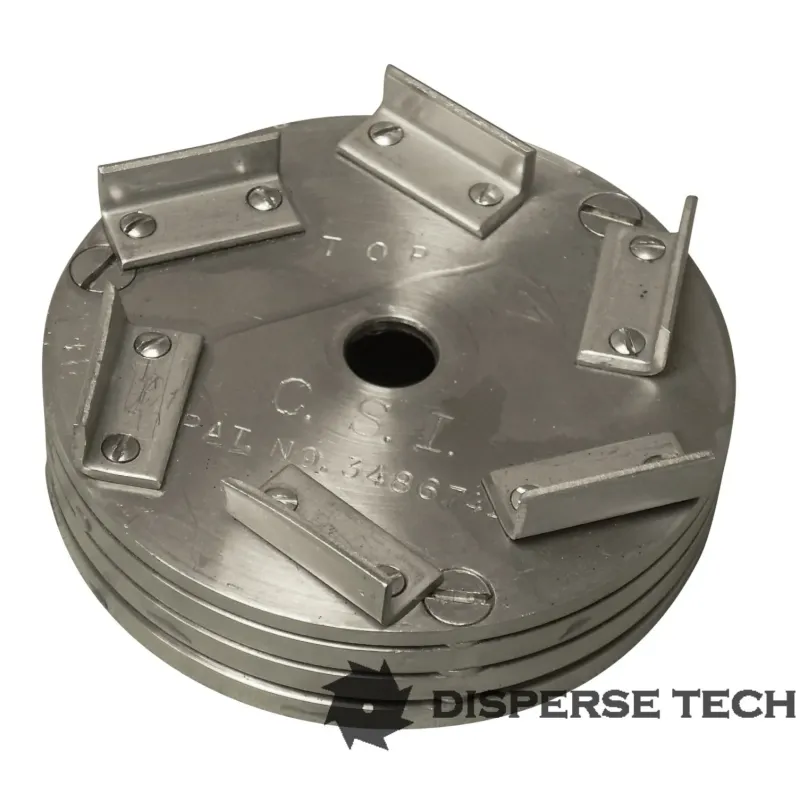

Constant Shear Impeller

$1,389.00

The CSI is a unique tool for high speed dispersion and emulsification. It produces finer grind in less time with less heat build up, less power consumption and less wear than any other impeller.

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.

Diameter
Material
Wear Treatment
Quantity

This product is no longer in stock with the selected values, please select smaller values.
loader
Optional Mounting Hub
Hubs are only required when mounting to non-standard disperser or adding an additional blade mid shaft.
Option image

Blade Mounting
Option image


Split Blade
Required when blade is too large to fit through manway or opening in tank. May be used to facilitate installation of mid shaft blade.

in

Bore
Minimum: 0
Maximum: 6
Unit: inch
in

Keyway
Minimum: 0
Maximum: 1
Unit: inch

No. Pinholes
Minimum: 0
Maximum: 8
in

Pin Diameter
Minimum: 0
Maximum: 1
Unit: inch
in

Bolt Circle
Minimum: 0
Maximum: 10
Unit: inch

angle
Minimum: 0
Maximum: 360
Angle between keyway and pinhole (when both ar present)
per unit
*Complete Quote Now.  Or access any time from Top Nav Bar.

A patented design using the Venturi principle to produce very fine grinds with laminar flow and less heat build-up. Also, excellent for emulsification when operated at low speeds. Has minimum heat build-up and longer life than any other design. Pat. No. 3486741.  The CSI is more versatile than any other impeller. By adjusting the configuration and distance between the Venturi rings, or by providing different spacing in multi ring units, the CSI can be adapted to meet a wide variety of operating conditions   from high to low viscosity.

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.

BLC100
