Ring Blade

$386.00

A high shear design accererates product through a series of rings to produce very fine grinds with laminar flow and less heat build-up. Also, excellent for emulsification when operated at low speeds.

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.

Diameter
Material
Wear Treatment
Quantity

This product is no longer in stock with the selected values, please select smaller values.
loader
Optional Mounting Hub
Hubs are only required when mounting to non-standard disperser or adding an additional blade mid shaft.
Option image

Blade Mounting
Option image


Split Blade
Required when blade is too large to fit through manway or opening in tank. May be used to facilitate installation of mid shaft blade.

in

Bore
Minimum: 0
Maximum: 6
Unit: inch
in

Keyway
Minimum: 0
Maximum: 1
Unit: inch

No. Pinholes
Minimum: 0
Maximum: 8
in

Pin Diameter
Minimum: 0
Maximum: 1
Unit: inch
in

Bolt Circle
Minimum: 0
Maximum: 10
Unit: inch

angle
Minimum: 0
Maximum: 360
Angle between keyway and pinhole (when both ar present)
per unit
*Complete Quote Now.  Or access any time from Top Nav Bar.

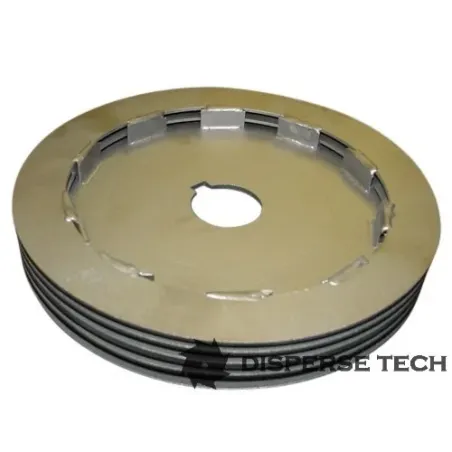

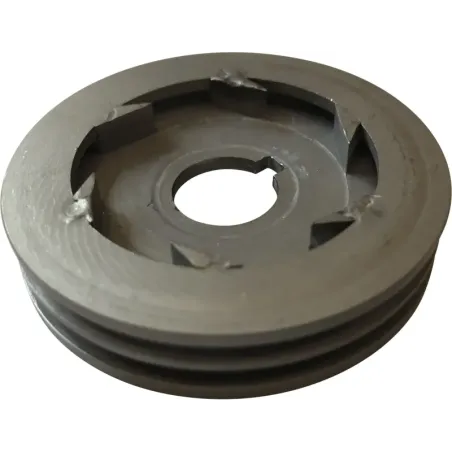

The 'D' blade or "Ring" blade, consists of a series of contoured rings.  Centrifugal force aided by a series of vertical tabs drive material through gaps between adjacent rings.  Material accelerates between the rings and is discharged into the low pressure area outside the rings.  The resulting velocity differential create the shear forces that break the agglomerates and disperse the products.  Ring blades are typically run at higher tip speed than conventional blades, 5000-6000 fpm.  Besides de-agglomeration and dispersion the ring blade is suitable for many emulsifying operations.

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.

BLD020
