CMC Double Planetary Mixers
$0.00
CMC/Inoue Double Planetary Mixers are the ideal choice for mixing and kneading viscous pastes, gently blending shear sensitive formulations or drying and granulating powders. A slow-speed, high-torque approach to material handling, the Double Planetary Mixer offers the capability to address a wide variety of applications and viscosities. Available in laboratory, pilot, and productions sizes.

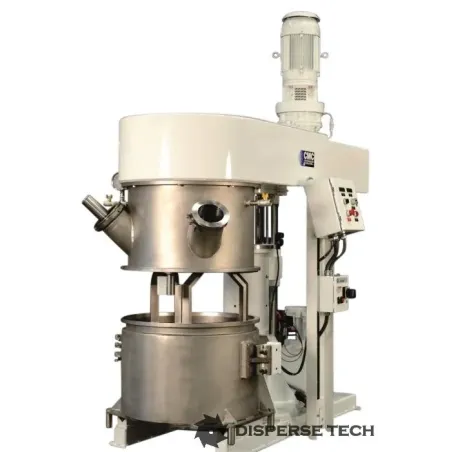

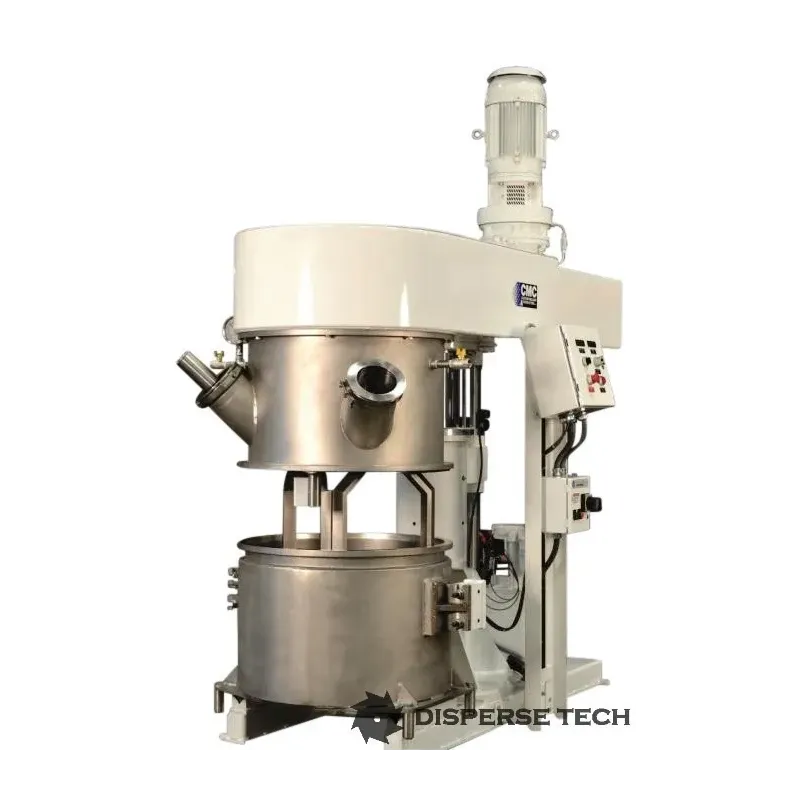

The CMC/Inoue Double Planetary Mixer is constructed with a pair of open frame type blades (gate style). Each blade rotates on its own axis while simultaneously orbiting around the mixing vessel. The precisely designed clearance between the blades and between the blade and the mix tanks inner walls provides a strong shearing force, resulting in superior mixing, kneading, and dispersion. Various blade configurations ensure the best performance on the mixing process.
| Model | Main Motor (HP) | Hydraulic | Min. Capacity (Liters) | Max. Capacity (Liters) | Length (Inches) | Width (Inches) | Height (Inches) | Raised Height (Inches) |
| DP-0.5 | 0.25 | Manual Crank | 125 mL | 500 mL | 17.4 | 11.3 | 18.2 | 18.2 |
| DP-1.5 | 0.25 | Manual Crank | 175 mL | 1.1 L | 22.4 | 22.4 | 21.6 | 21.6 |
| DP-5 | 0.5 | Manual Crank | 1 | 3 | 304 | 30.4 | 30.6 | 30.6 |
| DP-15 | 1 | Manual Crank | 3 | 11 | 37.1 | 37.1 | 37.6 | 37.6 |
| DP-50 | 5 | 1 | 12 | 38 | 53 | 53 | 73 | 89 |
| DP-150 | 10 | 2 | 40 | 120 | 83 | 83 | 87 | 111 |
| DP-350 | 20 | 5 | 85 | 260 | 86 | 86 | 108 | 136 |
| DP-600 | 30 | 7.5 | 145 | 420 | 91 | 91 | 114 | 149 |
| DP-1300 | 60 | 10 | 325 | 975 | 115 | 57 | 160 | 204 |
| DP-2300 | 100 | 15 | 575 | 1725 | 141 | 66 | 192 | 242 |
| Specifications Included in the chart are for information purposes only and subject to change | ||||||||
DP
CMC/Inoue Double Planetary Mixers are the ideal choice for mixing and kneading viscous pastes, gently blending shear sensitive formulations or drying and granulating powders. A slow-speed, high-torque approach to material handling, the Double Planetary Mixer offers the capability to address a wide variety of applications and viscosities. Available in laboratory, pilot, and productions sizes.
