CMC Double Planetary Mixers

$0.00

CMC/Inoue Double Planetary Mixers are the ideal choice for mixing and kneading viscous pastes, gently blending shear sensitive formulations or drying and granulating powders. A slow-speed, high-torque approach to material handling, the Double Planetary Mixer offers the capability to address a wide variety of applications and viscosities. Available in laboratory, pilot, and productions sizes.

Quantity

*Complete Quote Now.  Or access any time from Top Nav Bar.

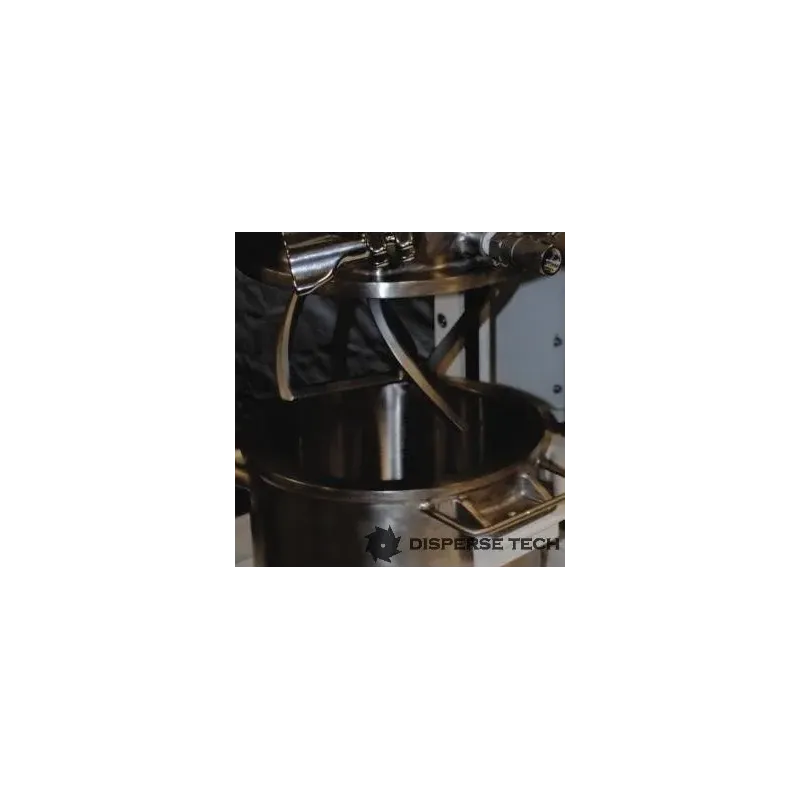

The CMC/Inoue Double Planetary Mixer is constructed with a pair of open frame type blades (gate style). Each blade rotates on its own axis while simultaneously orbiting around the mixing vessel. The precisely designed clearance between the blades and between the blade and the mix tanks inner walls provides a strong shearing force, resulting in superior mixing, kneading, and dispersion. Various blade configurations ensure the best performance on the mixing process.

ModelMain Motor (HP)HydraulicMin. Capacity (Liters)Max. Capacity (Liters)Length (Inches)Width (Inches)Height (Inches)Raised Height (Inches)
DP-0.5 0.25 Manual Crank 125 mL 500 mL 17.4 11.3 18.2 18.2
DP-1.5 0.25 Manual Crank 175 mL 1.1 L 22.4 22.4 21.6 21.6
DP-5 0.5 Manual Crank 1 3 304 30.4 30.6 30.6
DP-15 1 Manual Crank 3 11 37.1 37.1 37.6 37.6
DP-50 5 1 12 38 53 53 73 89
DP-150 10 2 40 120 83 83 87 111
DP-350 20 5 85 260 86 86 108 136
DP-600 30 7.5 145 420 91 91 114 149
DP-1300 60 10 325 975 115 57 160 204
DP-2300 100 15 575 1725 141 66 192 242
Specifications Included in the chart are for information purposes only and subject to change
DP

Download

CMC Double Planetary Mixer

Custom Milling & Consulting, Inc.’s line of high quality Double Planetary Mixers provide faster mixing cycles and better dispersion when compared to traditional planetary mixers. CMC’s robust design allows for the processing of the most stringent, high viscosity materials time and time again.

Download (228.63k)
