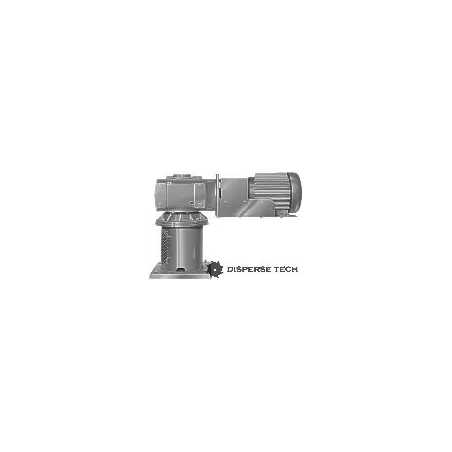

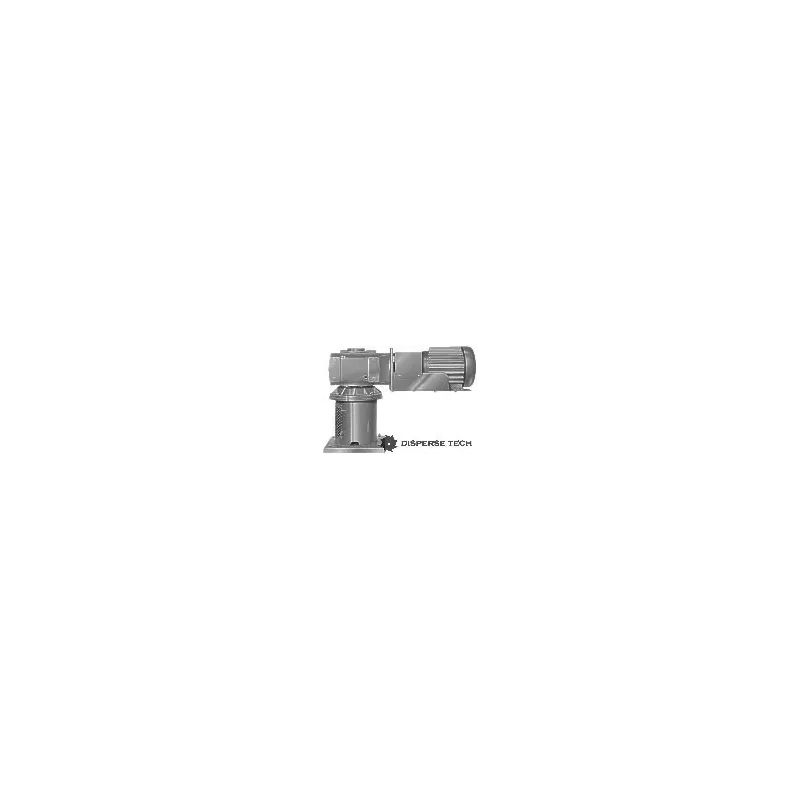

MixMor Series L Turbine Agitators

SKU MIX-L Category Agitators
$0.00
0/5

The L series utilizes a triple reduction, helical/bevel gear arrangement that is 96.5% efficient.

MODEL MIX-L

** By Quotation Only

Due to numerous configuration options and in efforts to ensure designs meet customer's requirements, pricing is only available by quotation.

Please contact us to discuss your requirements.  Our engineers will assist in providing a design to meet your specific needs.

Request Pricing / Info
close

Request Pricing / Info



The L series utilizes a triple reduction, helical/bevel gear arrangement that is 96.5% efficient. Housings are manufactured of Gray cast iron with large output shafts and oversized bearings. The low speed shaft includes an oil leakage protection chamber, which traps any possible leakage through the quadrilip seal. Lubrication oil in the reservoir is automatically directed by splash to all bearings and gears with the exception of the lower output shaft bearing, which is grease lubricated. Drive incorporates a lower self-aligning spherical roller bearing to withstand the forces of mixer service for an extended L-10 bearing life.

  • Horsepower Range: 1 to 125
  • Speed Range: 20 to 218 rpm
  • Reduction Type: Helical/Bevel
