ITC Dispersion Blade

$84.00

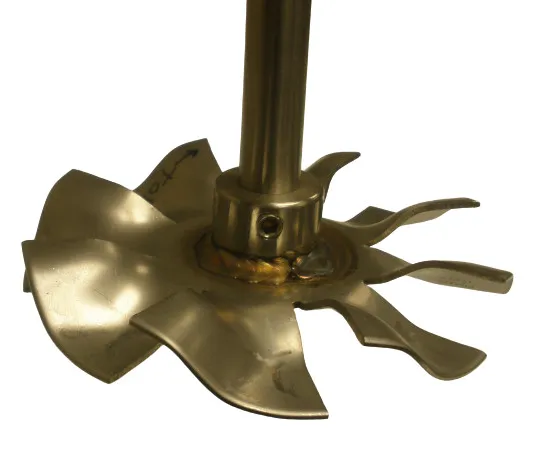

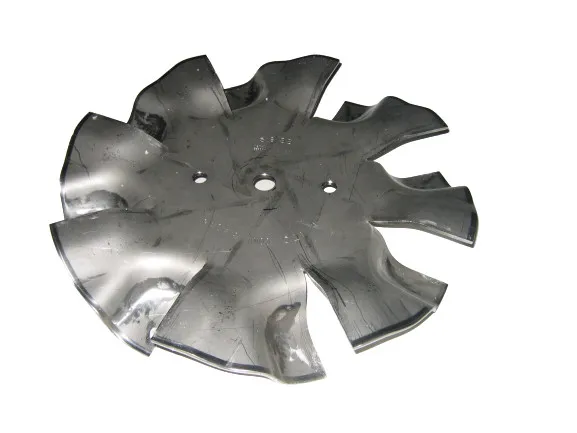

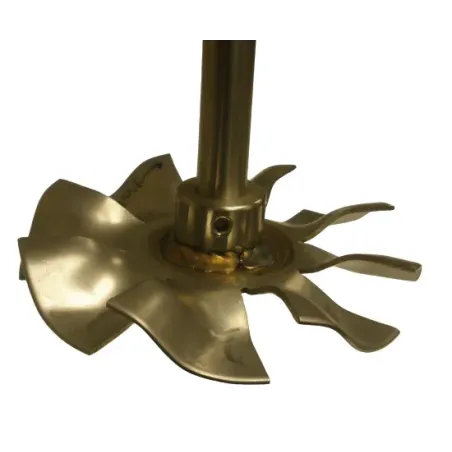

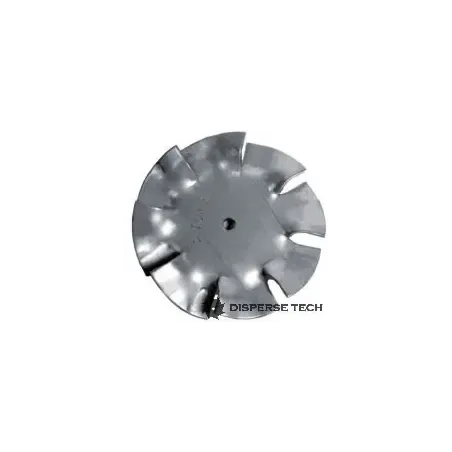

he Conn ITC, Style S, has large pitched teeth on the preiphery of the disk. The large surface area of these teeth provide a high degree of pumping. Recommended for dispersing fiberous additives and fillers. While this dispersion blade does not have louvers as with the othe rconn blades it produces axial flow with its angled teeth.

Material
Wear Treatment
CONN Size
Quantity

This product is no longer in stock with the selected values, please select smaller values.
loader
Optional Mounting Hub
Hubs are only required when mounting to non-standard disperser or adding an additional blade mid shaft.
Option image

Blade Mounting
Option image


Split Blade
Required when blade is too large to fit through manway or opening in tank. May be used to facilitate installation of mid shaft blade.

in

Bore
Minimum: 0
Maximum: 6
Unit: inch
in

Keyway
Minimum: 0
Maximum: 1
Unit: inch

No. Pinholes
Minimum: 0
Maximum: 8
in

Pin Diameter
Minimum: 0
Maximum: 1
Unit: inch
in

Bolt Circle
Minimum: 0
Maximum: 10
Unit: inch

angle
Minimum: 0
Maximum: 360
Angle between keyway and pinhole (when both ar present)
per unit
*Complete Quote Now.  Or access any time from Top Nav Bar.

he Conn ITC, Style S, has large pitched teeth on the preiphery of the disk. The large surface area of these teeth provide a high degree of pumping. Recommended for dispersing fiberous additives and fillers. While this dispersion blade does not have louvers as with the othe rconn blades it produces axial flow with its angled teeth.

Please note SIZE is not the measured diameter. Actual diameter of the blade is slightly larger. Contact us if you require exact measurement of diameter.

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.

.

BLS020
