BLL030DA
  • BLL030DA

L Blade

$76.00

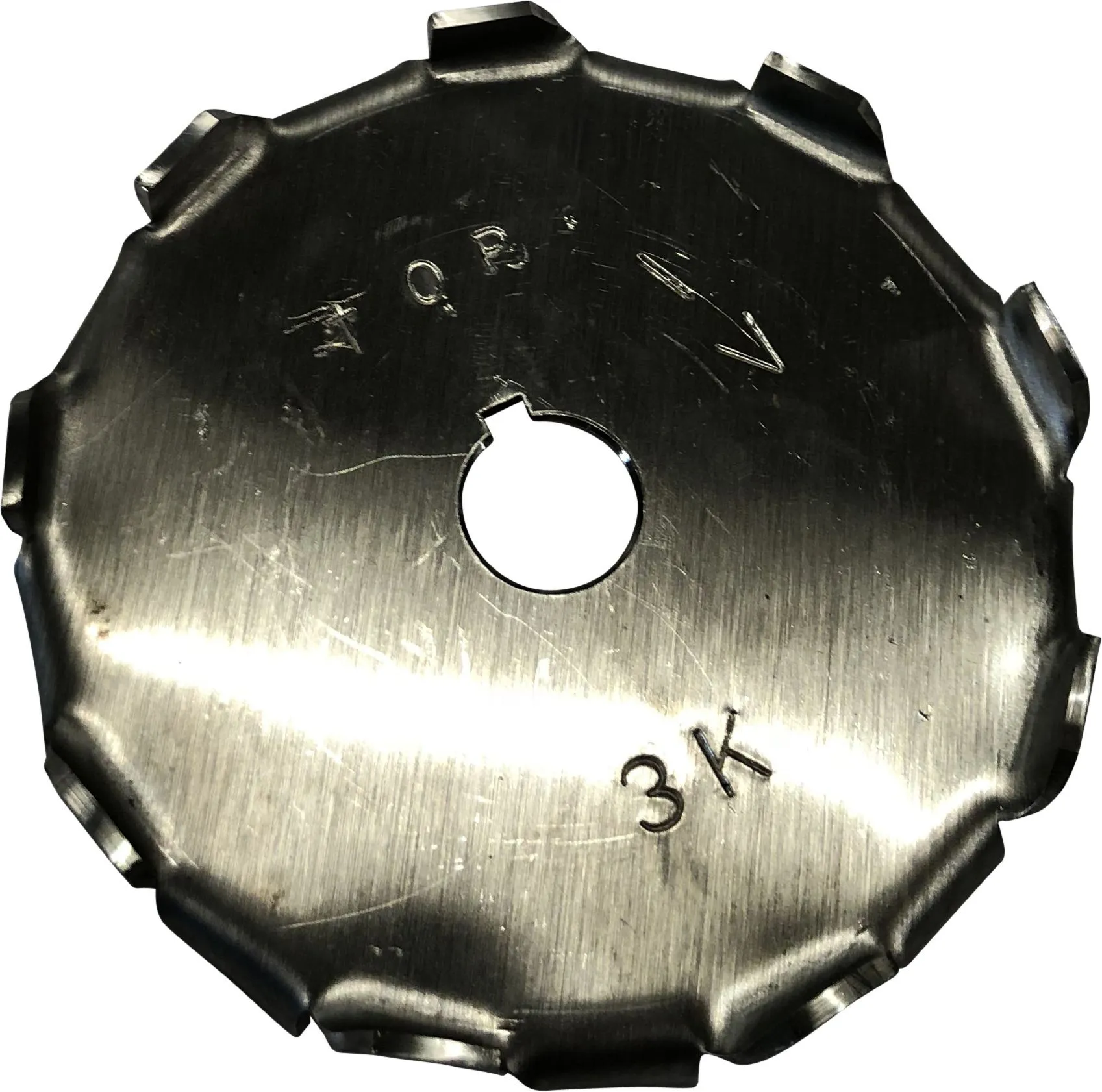

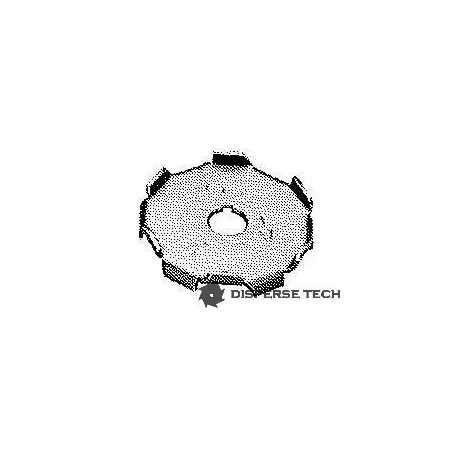

The lab blade is formed with teeth nearly tangential to the outer edge of the blade. Originally designed for ease of fabrication, this blade has found favor due to it's low pumping resulting from the tooth angle. The blade was originally sold as a laboratory K blade. The lab blade is supplied only in smaller sizes with a 1/2" bore sand keyway standard.

Diameter
Material
Wear Treatment
Quantity

This product is no longer in stock with the selected values, please select smaller values.
loader
Optional Mounting Hub
Hubs are only required when mounting to non-standard disperser or adding an additional blade mid shaft.
Option image

Blade Mounting
Option image


Split Blade
Required when blade is too large to fit through manway or opening in tank. May be used to facilitate installation of mid shaft blade.

in

Bore
Minimum: 0
Maximum: 6
Unit: inch
in

Keyway
Minimum: 0
Maximum: 1
Unit: inch

No. Pinholes
Minimum: 0
Maximum: 8
in

Pin Diameter
Minimum: 0
Maximum: 1
Unit: inch
in

Bolt Circle
Minimum: 0
Maximum: 10
Unit: inch

angle
Minimum: 0
Maximum: 360
Angle between keyway and pinhole (when both ar present)
per unit
*Complete Quote Now.  Or access any time from Top Nav Bar.

The lab blade is formed with teeth nearly tangential to the outer edge of the blade. Originally designed for ease of fabrication, this blade has found favor due to it's low pumping resulting from the tooth angle. The blade was originally sold as a laboratory K blade. The lab blade is supplied only in smaller sizes with a 1/2" bore sand keyway standard.
