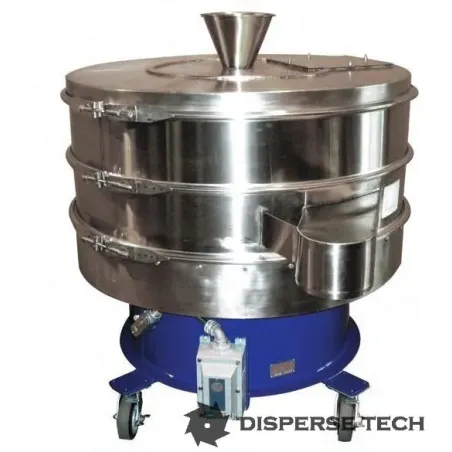

VORTI-SIV High Capacity Separators
Models VS0030, VS0048 & VS0060
The 30, 48 and 60 screen diameter VORTI-SIVs are three of the heaviest built gyratory sieves on the market.
** By Quotation Only
Due to numerous configuration options and in efforts to ensure designs meet customer's requirements, pricing is only available by quotation.
Please contact us to discuss your requirements. Our engineers will assist in providing a design to meet your specific needs.
Models VS0030, VS0048 & VS0060 Models VS0030, VS0048 & VS0060
The 30, 48 and 60 screen diameter VORTI-SIVs are three of the heaviest built gyratory sieves on the market. They are specially manufactured to be driven by a unique 1200 or 1750 RPM indirect or direct drive motor system, utilizing explosion proof, TEFC or NEMA 4X 3HP or 2-1/2HP motors. Units are supplied with an adjustable eccentric weight system in single, double or multiple deck models. The stainless steel or nylon screen element is secured by a Vee-type clamp band.

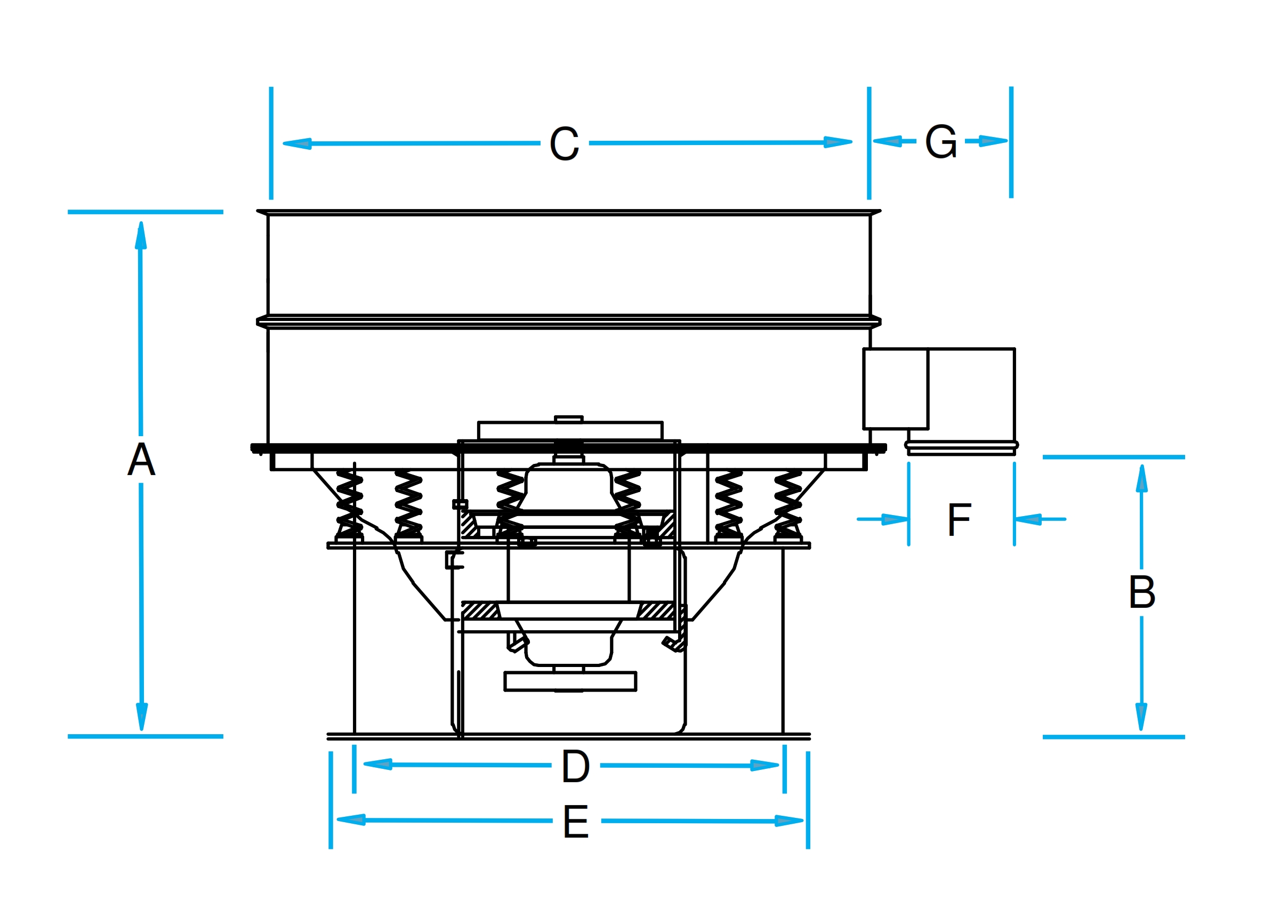

MODEL | SCREEN DIA. | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|---|
VS0030 | 30 INCH | 28" | 14-3/4" | 31-3/4" | 17" | 20-3/4" | 4" | 7" |
VS0040 | 40 INCH | 34" | 16-3/4" | 39-1/4" | 26-1/4" | 30" | 8" | 11-1/4" |
VS0048 | 48 INCH | 38" | 20-3/4" | 47-3/8" | 32-3/4" | 36-1/2" | 8" | 11" |
VS0060 | 60 INCH | 39" | 20-3/4" | 54-3/4" | 32-3/4" | 36-1/2" | 8" | 10-1/2" |
