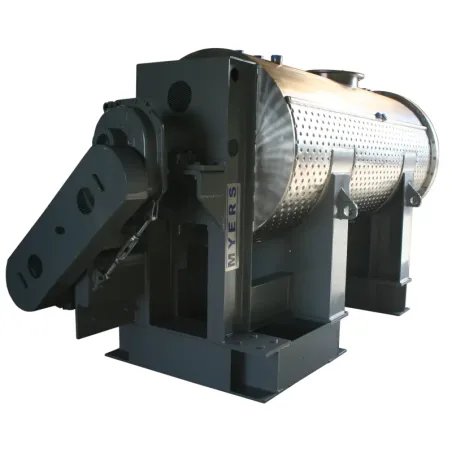

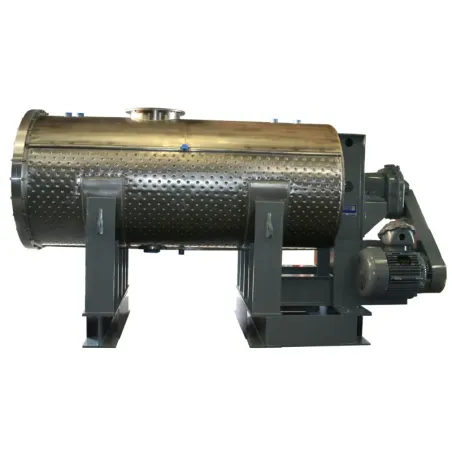

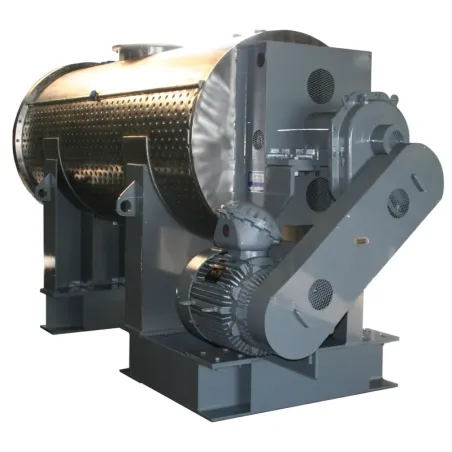

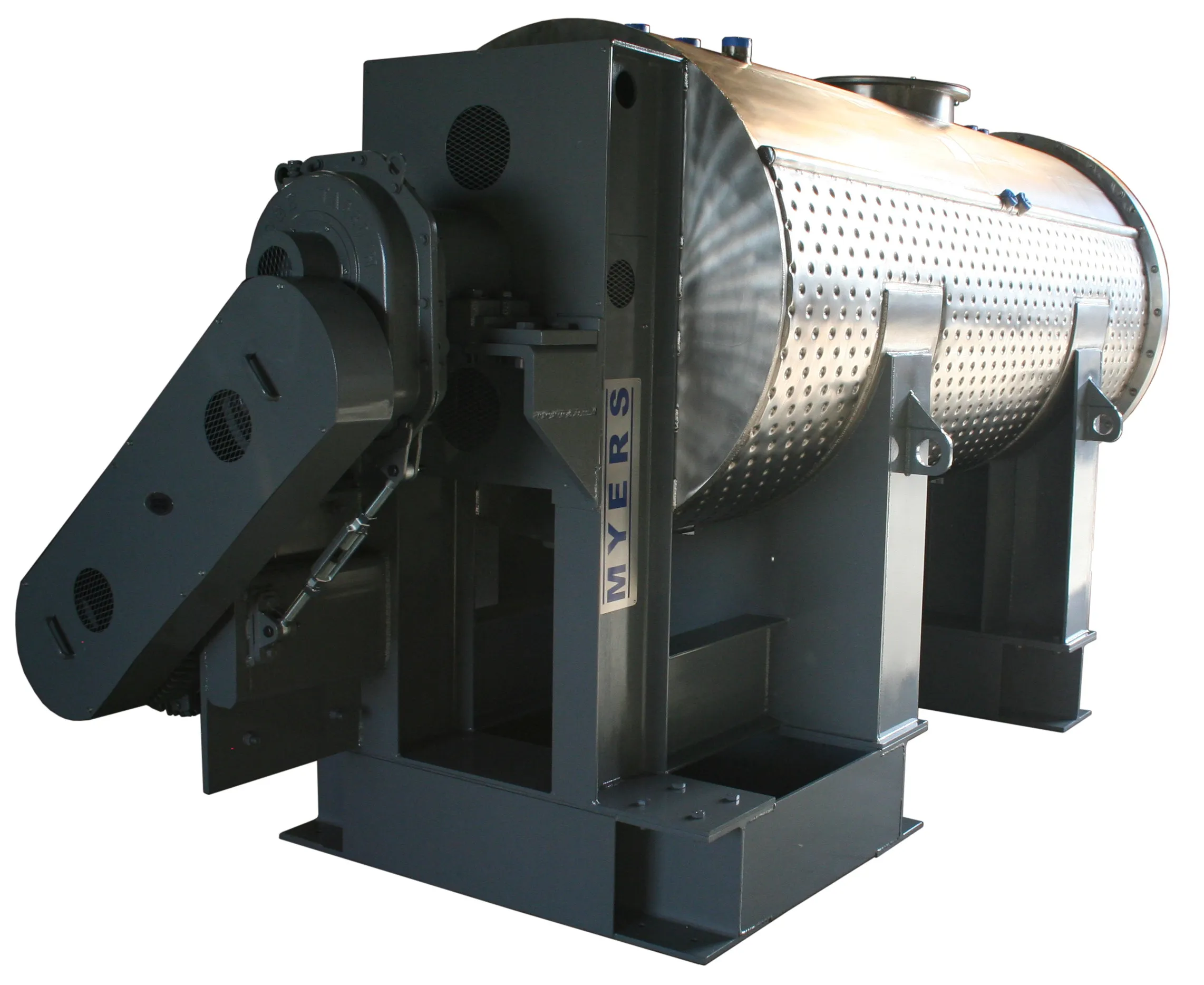

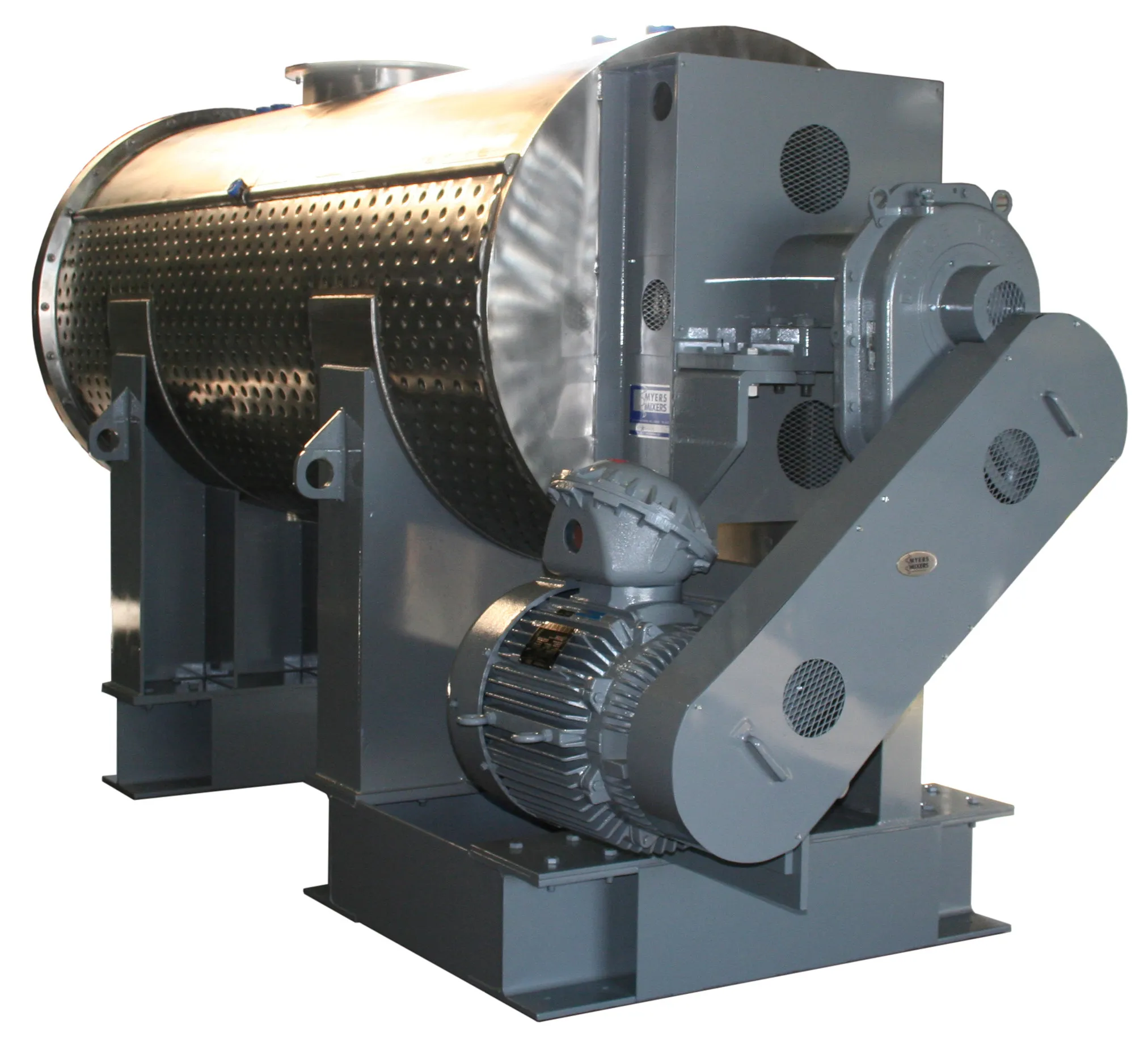

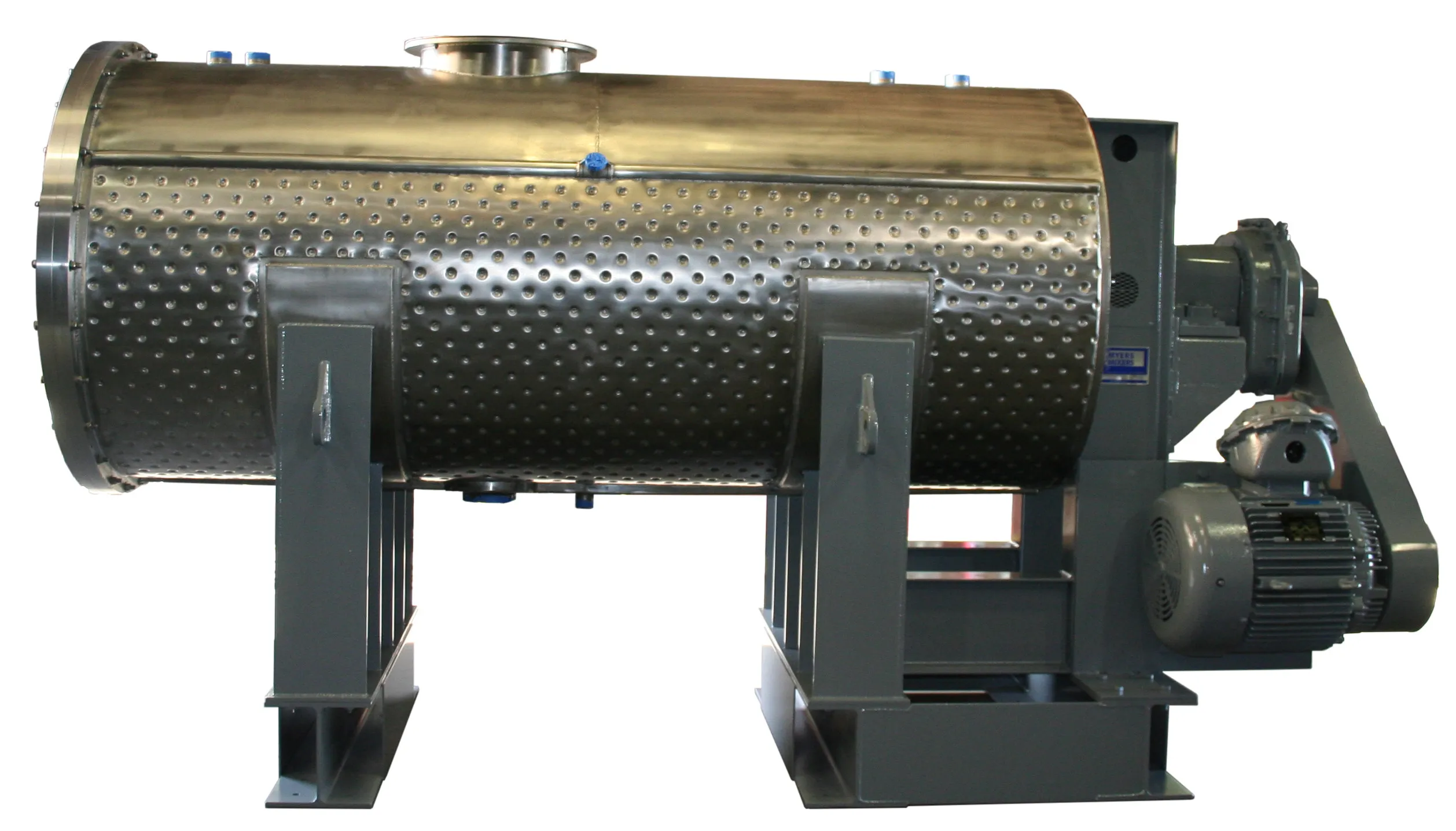

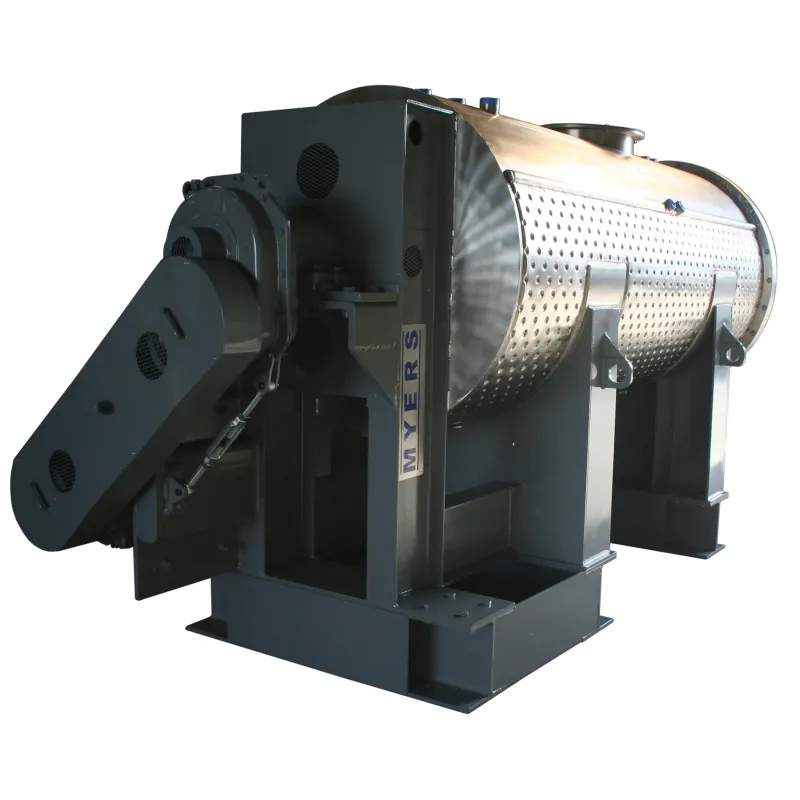

600/500 Horizontal Paste Mixer

The Myers Mixers horizontal mixer offers a superior design for reliable operation and exceptional in-service time.

Myers Mixers introduces the 600/500 Series Horizontal Mixer, with up to 900 gallon working capacity. The Myers Mixers horizontal  mixer is well suited for intermediate-speed blending of medium viscous materials such as adhesives and viscous coatings.

8 bolt-on-style axial turbine blades homogenize the batch with minimal shear. Bolted end allows access for simplified maintenance and cleaning.

Designed flexibility can allow for 500 - 1500 FPM (feet per minute blade tip speed) to accommodate mixing modalities from gentle folding to light shear, and viscosities from 20,000 cP to 750,000 cP.

Industries and applications include:

- Caulking

- Adhesives

- Sealants

- Joint Compounds

Request Pricing / Info
close

Request Pricing / Info



The Myers Mixers horizontal mixer offers a superior design for reliable operation and exceptional in-service time.

Myers Mixers introduces the 600/500 Series Horizontal Mixer, with up to 900 gallon working capacity. The Myers Mixers horizontal  mixer is well suited for intermediate-speed blending of medium viscous materials such as adhesives and viscous coatings.

8 bolt-on-style axial turbine blades homogenize the batch with minimal shear. Bolted end allows access for simplified maintenance and cleaning.

Designed flexibility can allow for 500 - 1500 FPM (feet per minute blade tip speed) to accommodate mixing modalities from gentle folding to light shear, and viscosities from 20,000 cP to 750,000 cP.

Industries and applications include:

- Caulking

- Adhesives

- Sealants

- Joint Compounds

600/500

Download

Myers Horizontal Paste Mixer

Myers Model 600/500 Horizontal Paste Mixer

Download (557.58KB)
