Model GA Gear Drive Air Mixer

$1,792.00

Mix-Mor Incorporated Model GA Portable Gear Drive Air Mixer

MixMor Offers high quality, heavy duty portable air mixers ranging from 1/3 to 4 hp. With shaft diameters from 5/8" through 1-1/4", we can handle even the toughest products.

* see table below for specifications on the individual mixers.

Material
horsepower
Props
Quantity

*Complete Quote Now.  Or access any time from Top Nav Bar.

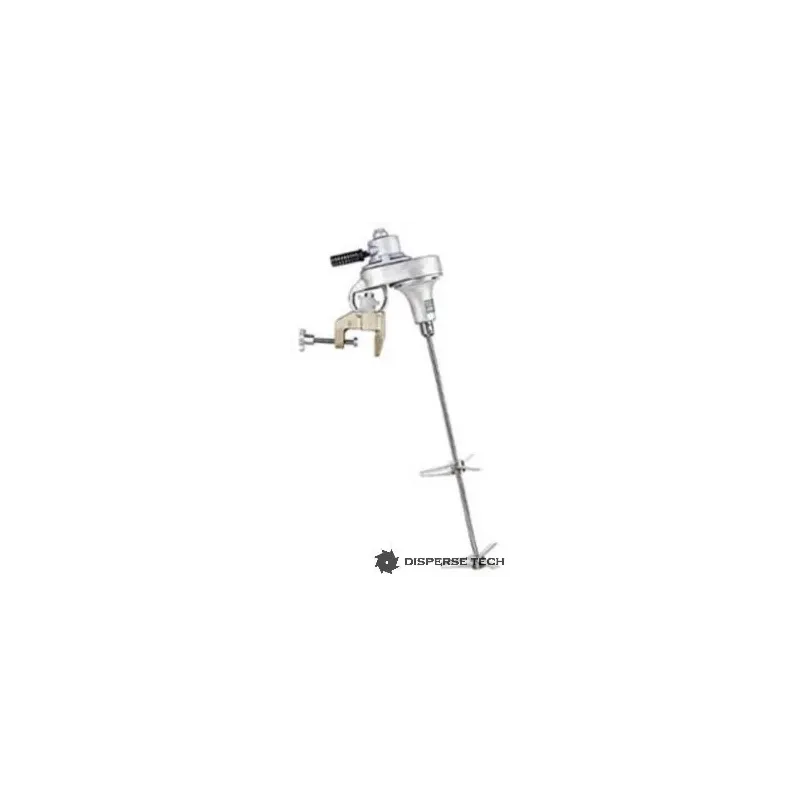

Mix-Mor Incorporated Model GA Portable Direct Gear Air Mixer

MixMor heavy duty gear drive mixers use standard NEMA C face motors mounted on aluminum gear drive housings. Housings enclose helical gears with a double sealed ball bearing with upper and lower seals for or additional protection. Reducers are grease lubricated for life. Mixer mounts with a heavy duty brass clamp with handwheels for fastening, thus eliminating the need for special tools or wrenches. The clamp and drive housing have a ball and socket assembly to allow 360 rotation on the horizontal plane and 100 on the vertical plane for optimum shaft angle.

SPECIFICATIONS

ModelPower SourceMixerShaft

Impeller
Quantity / Diameter

weight
hp rpm Single Dual
GA-13 40 psi, 22 cfm 75-420 5/8" x 36" 9" 8" 45
GA-11 80 psi, 40 cfm 1 75-420 7/8" x 60" 13" 12" 80
GA-2 80 psi, 70 cfm 2 75-420 7/8" x 60" 15" 14" 110
GA-4 99 psi, 135 cfm 4 75-420 7/8" x 60" 16" 15" 120

Many options are available:

  • Housings: Aluminum alloy housings with heavy duty, corrosion resistant brass clamps. Available in stainless steel or other alloys.
  • All Stainless Steel Mixers
  • Coated Shaft and Impellers
  • Sanitary Finishes
  • Shaft and Impellers in other Alloys
  • Stainless Steel Motors
  • USDA Accepted Models
  • Impellers: Marine Props, hydrofoils, pitched and flat blade turbines, and dispersion blades are available.
  • Mixer rpm range of 60-350 also available

Contact us with your requirements, we would be happy to prepare a suitable design for your application.
