Model D Direct Drive Electric Mixer

$1,135.00

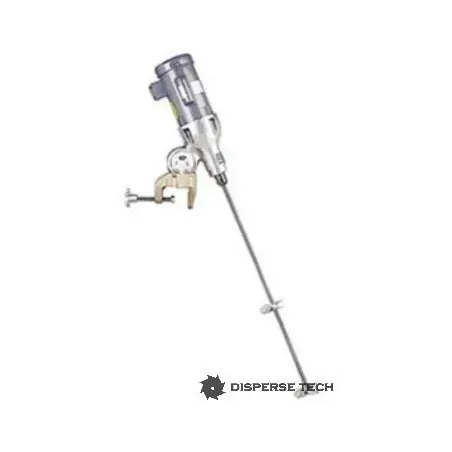

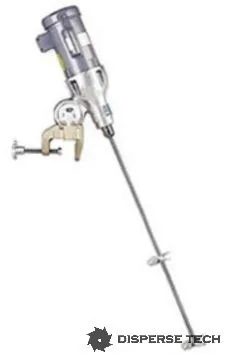

Mix-Mor Incorporated Model D Portable Direct Drive Electric Mixer

MixMor Offers high quality, heavy duty portable mixers ranging from 1/4 to 5 hp.  With shaft diameters from 5/8" through 1-1/4", we can handle even the toughest products.

* see table below for specifications on the individual mixers.

Material
horsepower
Props
Quantity

*Complete Quote Now.  Or access any time from Top Nav Bar.

Mix-Mor Incorporated Model D Portable Direct Drive Electric Mixer

MixMor heavy duty direct drive mixers use standard NEMA C face motors mounted on aluminum drive housings. The housing encloses a double sealed ball bearing, with a lower lip seal for additional protection, to provide outboard support for the quill shaft which is subject to stresses from the mixer shaft. Mixer mounts with a heavy duty brass clamp with handwheels for fastening, thus eliminating the need for special tools or wrenches. The clamp and drive housing have a ball and socket assembly to allow 360 rotation on the horizontal plane and 100 on the vertical plane for optimum mixer shaft angle.

SPECIFICATIONS

ModelPower SourceMixerShaftImpeller
Quantity / Diameter
weight
hp rpm Single Dual
D-14 115/230 Volt,1φ,60hz ¼ 1750 5/8" x 36" 4" 3½" 34
D-13 115/230 Volt,1φ,60hz 1750 5/8" x 36" 4½" 4" 35
D-12 115/230 Volt,1φ,60hz ½ 1750 5/8" x 48" 5" 4½" 52
D-34 115/230 Volt,1φ,60hz ¾ 1750 5/8" x 48" 5½" 5" 55
D-11 230/460 Volt,3φ,60hz 1 1150 7/8" x 60" 6½" 6" 85
D-15 230/460 Volt,3φ,60hz 1150 7/8" x 60" 7" 6½" 112
D-2 230/460 Volt,3φ,60hz 2 1150 7/8" x 60" 7½" 7" 123
D-3 230/460 Volt,3φ,60hz 3 1150 1-1/4" x 60" 8" 7½" 159
D-5 230/460 Volt,3φ,60hz 5 1150 1-1/4" x 60" 8" 7½" 188

Many options are available:

  • Motors: Standard, commercially available, NEMA C face motors in all enclosures and power requirements.  Including:
    • Explosion proof
    • Wash Down Duty
  • Variable Speed Drives: Available with Inverter, AC variable frequency or Accumix® SCR/DC drives in NEMA 1 or 4 enclosures.
  • Housings: Aluminum alloy housings with heavy duty, corrosion resistant brass clamps. Available in stainless steel or other alloys.
  • Impeller Speeds: Direct Drive 1150, 1750 or 3450 rpm.
  • All Stainless Steel Mixers
  • Coated Shaft and Impellers
  • Sanitary Finishes
  • Shaft and Impellers in other Alloys
  • Stainless Steel Motors
  • USDA Accepted Models
  • Impellers: Marine Props, hydrofoils, pitched and flat blade turbines, and dispersion blades are available.

Contact us with your requirements, we would be happy to prepare a suitable design for your application.
