G13 - Gear Drive Portable Prop Mixer
  • Gear Drive Portable Propeller Mixer
  • G13 - Gear Drive Portable Prop Mixer

Model G Gear Drive Electric Mixer

$1,585.00

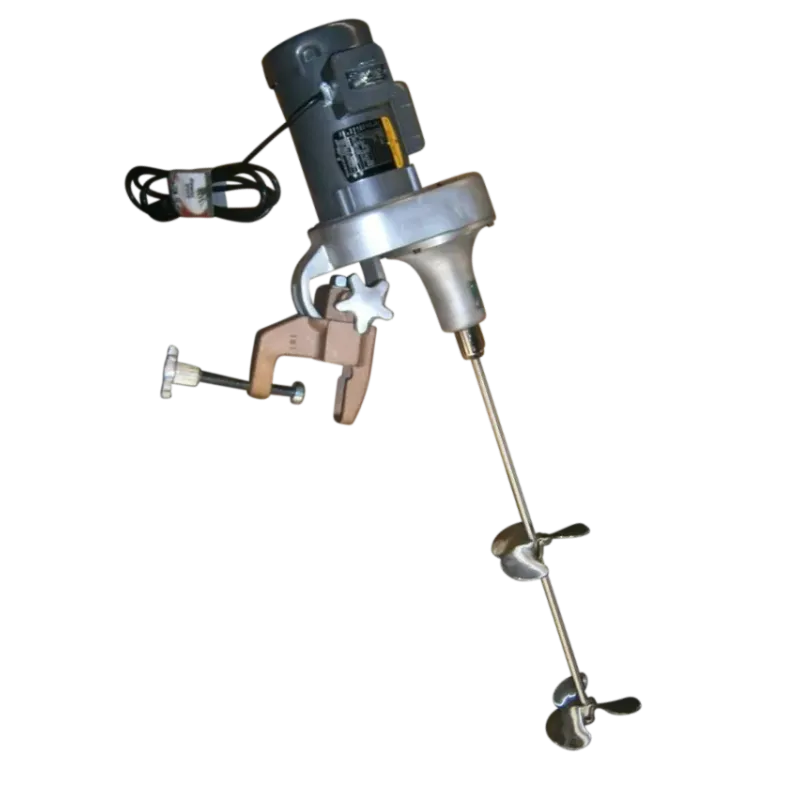

Mix-Mor Incorporated Model G Portable Gear Drive Electric Mixer

MixMor Offers high quality, heavy duty portable mixers ranging from 1/4 to 5 horsepower.  With shaft diameters from 5/8" through 1-1/4", we can handle even the toughest products.

* see table below for specifications on the individual mixers.

Material
horsepower
Props
Quantity

*Complete Quote Now.  Or access any time from Top Nav Bar.

Mix-Mor Incorporated Model G Portable Gear Drive Electric Mixer

MixMor heavy duty gear drive mixers use standard NEMA C face motors mounted on aluminum gear drive housings. Housings enclose helical gears with a double sealed ball bearing with upper and lower seals for or additional protection. Reducers are grease lubricated for life. Mixer mounts with a heavy duty brass clamp with handwheels for fastening, thus eliminating the need for special tools or wrenches. The clamp and drive housing have a ball and socket assembly to allow 360 rotation on the horizontal plane and 100 on the vertical plane for optimum shaft angle.

SPECIFICATIONS

ModelPower SourceMixerShaftImpeller
Quantity / Diameter
weight
hp rpm Single Dual
G-14 115/230 Volt,1φ,60hz ¼ 420 5/8" x 36" 8" 7" 45
G-13 115/230 Volt,1φ,60hz 420 5/8" x 36" 9" 8" 47
G-12 115/230 Volt,1φ,60hz ½ 420 7/8" x 48" 11" 10" 95
G-34 115/230 Volt,1φ,60hz ¾ 420 7/8" x 48" 12" 11" 100
G-11 230/460 Volt,3φ,60hz 1 420 7/8" x 60" 13" 12" 105
G-15 230/460 Volt,3φ,60hz 420 7/8" x 60" 14" 13" 109
G-2 230/460 Volt,3φ,60hz 2 420 7/8" x 60" 15" 14" 120
G-3 230/460 Volt,3φ,60hz 3 420 1-1/4" x 60" 16" 15" 140
G-5 230/460 Volt,3φ,60hz 5 420 1-1/4" x 60" 16" 15" 165

Many options are available:

  • Motors: Standard, commercially available, NEMA C face motors in all enclosures and power requirements.  Including:
    • Explosion proof
    • Wash Down Duty
  • Variable Speed Drives: Available with Inverter, AC variable frequency or Accumix® SCR/DC drives in NEMA 1 or 4 enclosures.
  • Housings: Aluminum alloy housings with heavy duty, corrosion resistant brass clamps. Available in stainless steel or other alloys.
  • Impeller Speeds: Gear Drive 230, 290, 350 or 420 rpm.
  • All Stainless Steel Mixers
  • Coated Shaft and Impellers
  • Sanitary Finishes
  • Shaft and Impellers in other Alloys
  • Stainless Steel Motors
  • USDA Accepted Models
  • Impellers: Marine Props, hydrofoils, pitched and flat blade turbines, and dispersion blades are available.

Contact us with your requirements, we would be happy to prepare a suitable design for your application.

G14-SS1

Download

MixMor Portable Mixer

Download (2.37M)
