ITT Dispersion Blade

$122.00

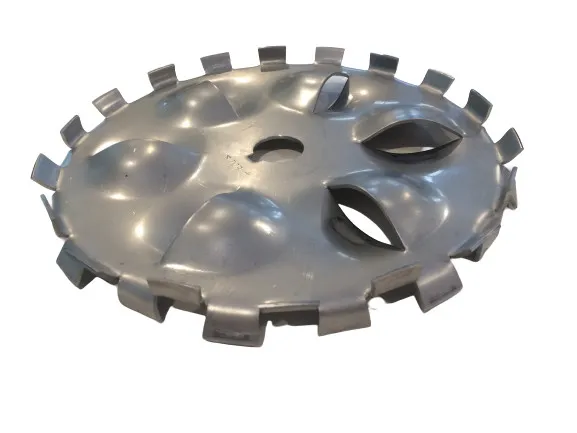

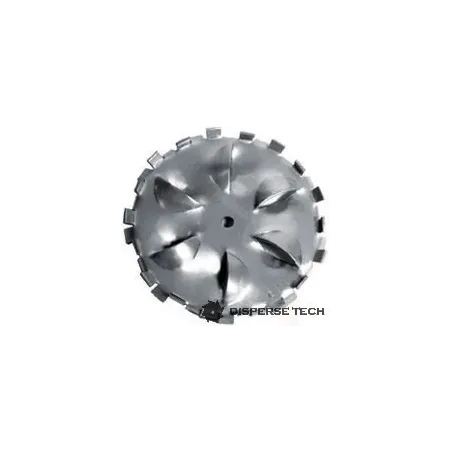

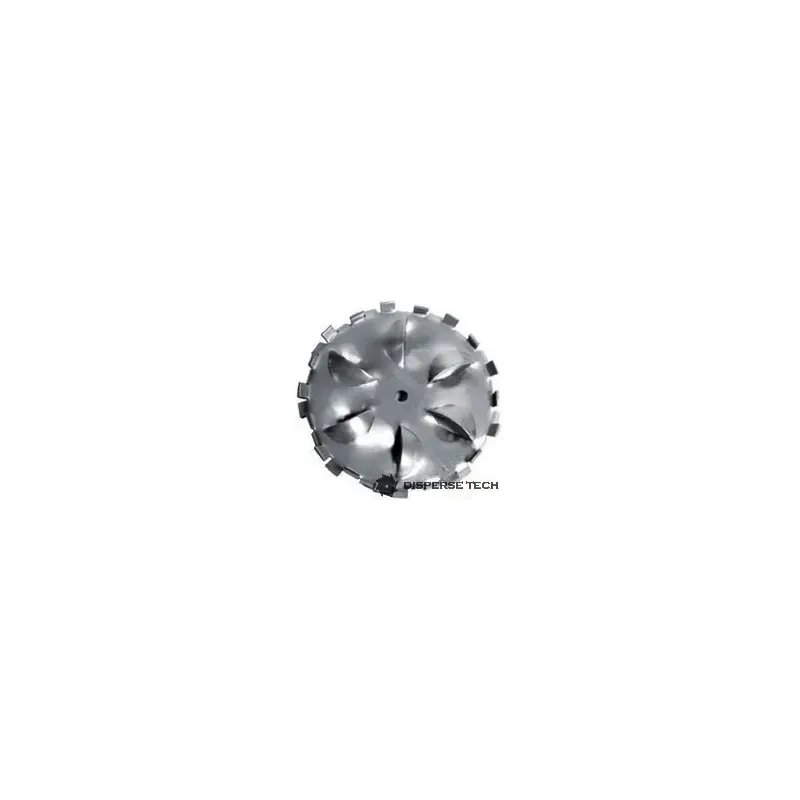

The Conn ITT (Intensive Type with Teeth), Type R, for high shear and agitation; Good material movement; Useful where high shear is required for a rapid and smooth blend or when high shear is not required but is not detrimental. This dispersion blade has vents or louvers used to introduce additional pumping action.

Please note SIZE is not the actual blade diameter.  See table below for measurement

Material
Wear Treatment
CONN Size
Quantity

This product is no longer in stock with the selected values, please select smaller values.
loader
Optional Mounting Hub
Hubs are only required when mounting to non-standard disperser or adding an additional blade mid shaft.
Option image

Blade Mounting
Option image


Split Blade
Required when blade is too large to fit through manway or opening in tank. May be used to facilitate installation of mid shaft blade.

in

Bore
Minimum: 0
Maximum: 6
Unit: inch
in

Keyway
Minimum: 0
Maximum: 1
Unit: inch

No. Pinholes
Minimum: 0
Maximum: 8
in

Pin Diameter
Minimum: 0
Maximum: 1
Unit: inch
in

Bolt Circle
Minimum: 0
Maximum: 10
Unit: inch

angle
Minimum: 0
Maximum: 360
Angle between keyway and pinhole (when both ar present)
per unit
*Complete Quote Now.  Or access any time from Top Nav Bar.

The Conn ITT (Intensive Type with Teeth), Type R, for high shear and agitation; Good material movement; Good combination where high shear is required for a rapid and smooth blend or when high shear is not required but is not detrimental. This dispersion blade has vents or louvers used to introduce additional pumping action.

 Contact us if you require exact measurement of diameter.

CONN ITT Blade (Style R)
Size Diameter Clear Diameter Size Diameter Clear Diameter
2 2⅜" 1" 18 20¾" 7¾"
3 3⅜" 1 ⅟16" 20 22" 5½"
4 4⅜" 1⅜" 22 24½" 7½"
5 6" 1¾" 24 27" 9½"
6 7¼" 2⅛" 26 29½" 11½"
7 8" 3¼" 28 32" 13½"
8 9¼" 3¼" 30 34¼" 15½"
9 10⅜" 3¼" 32 36" 17½"
10 11½" 3⅜" 34 38" 19½"
11 12½" 4¼" 36 40" 21½"
12 13⅝" 5" 38 42" 23½"
13 14⅞" 6" 40 44" 25½"
14 16" 5½" 42 46" 27½"
16 18¼" 5¾" 44 48" 29½"

As with all our blades it can be bored to fit any of the popular dispersers, including; Myers, Cowles, Hockmeyer, Schold, Shar, etc.
