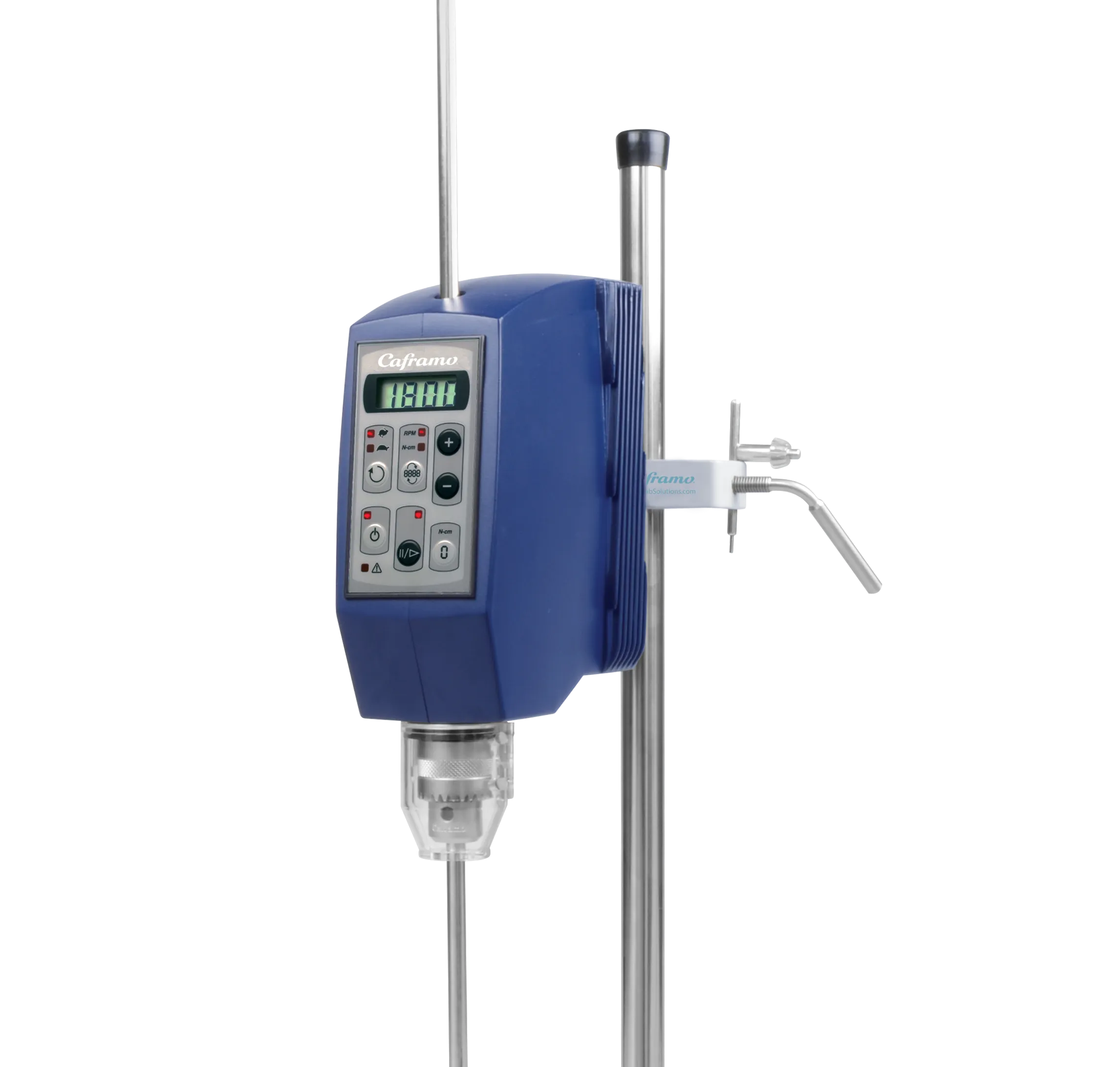

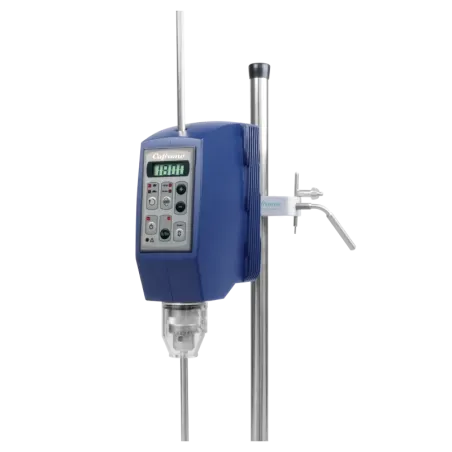

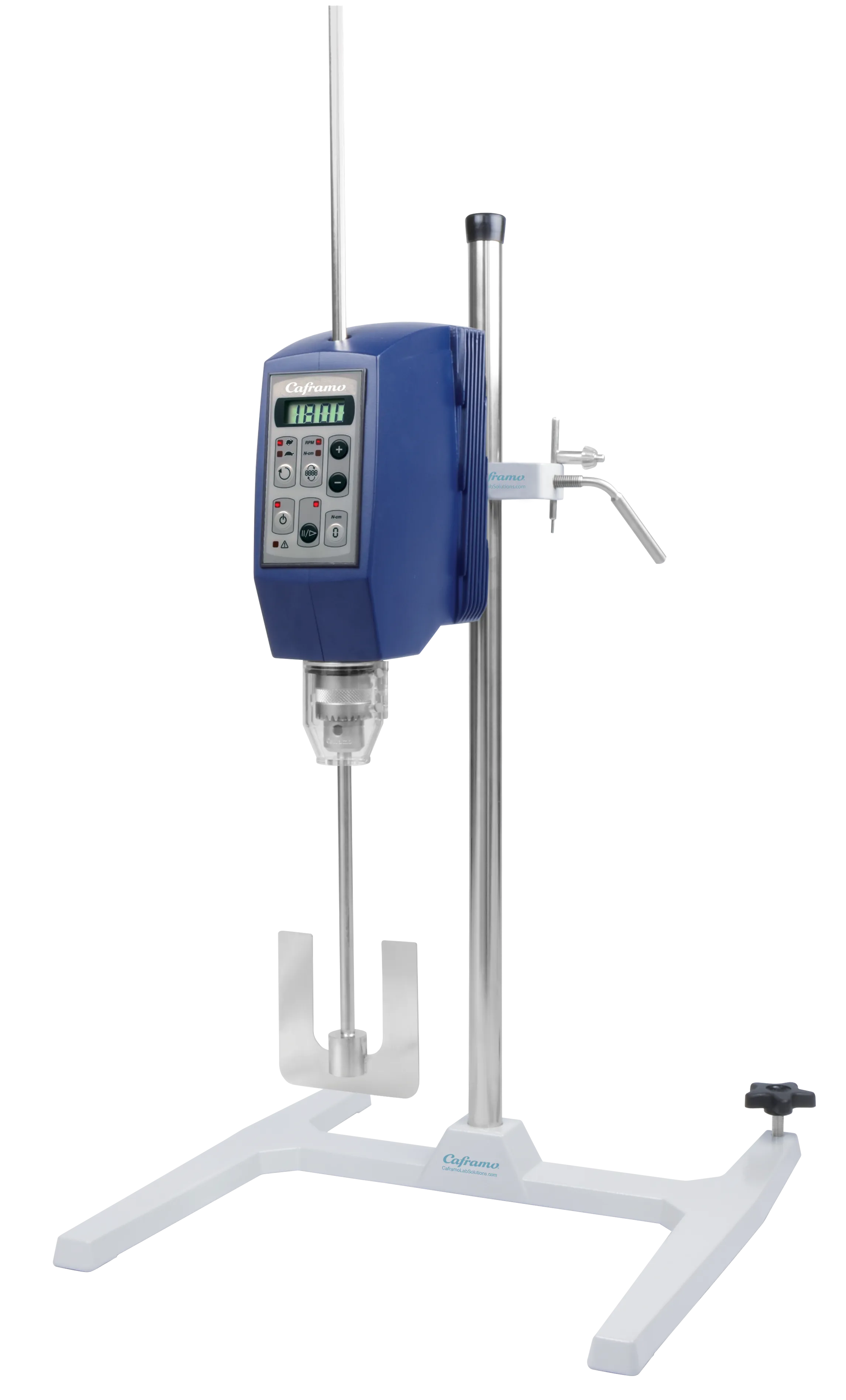

Caframo Heavy-Duty All-Purpose Stirrer

Name: Caframo Heavy-Duty All-Purpose Stirrer
Brand: Caframo
SKU: BDC
Price: 2049 USD
Availability: InStock

$2,049.00

Heavy-duty overhead stirrer features digital display of speed and torque, adjustable chuck up to 10 mm (⅜”), quiet and maintenance free. Available in three configurations: Universal 30 - 3000 rpm, Ultra Torque 12 - 1800 rpm, and Ultra Speed 40 - 6000 rpm.

*Shaft, Blade and Stand Sold Separately

Model: Ultra Speed (40-6000 rpm)

Quantity

Recommended accessories

Stirrer Stand

Caframo A110 Stirrer Stand

$330.00

Stirrer Clamp

	Caframo Clamp - accepts 1/2 in support rod - 9/16 to 1 3/16 in stand rod cast zinc-aluminum epoxy coated	Caframo A120 Clamp for 1/2 in support rod $117.00
	Caframo Clamp - accepts 5/8 in support rod - 9/16 to 1 3/16 in stand rod cast zinc-aluminum epoxy coated	Caframo A122 Clamp for 5/8 in support rod $136.00

Stirrer Shaft

	Caframo stainless steel shaft for impeller blades	Caframo Lab Shaft $77.00
	Lab Dispersion Shafts are designed for chucks mounting or are for use with lab air motors with sleeve attachments. The shaft is supplied with an adaptor for blades with a 1/2" center bore. Shafts over 1/2" diameter are machined to for use with a 1/2" chuck. WARNING: Shaft may bend if blade is not immersed in fluid when mixer is turned on.	Stainless Steel Lab Dispersion Shaft $85.00

Caframo’s heavy-duty stirrers are designed and engineered specifically to meet the continuous demands of heavy industrial use. The heart of the BDC line is the high-performance Brushless Direct Current (BDC) motor. A unique two-speed transmission provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance-free, and ideal for continuous use.

		Speed Range 1		Speed Range 2
	Model	HP	rpm	Peak torque	rpm	Peak torque
Utlra Torque	BDC1850	1/5	12-350	50 in·lbs	124-1800	10 in·lbs
Universal	BDC3030	1/5	20-584	30 in·lbs	206-3000	6 in·lbs
Ultra Speed	BDC6015	1/5	40-1168	15 in·lbs	412-6000	3 in·lbs

Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish, and German), calibration certificate, and a three-year warranty. Expect to be impressed!
