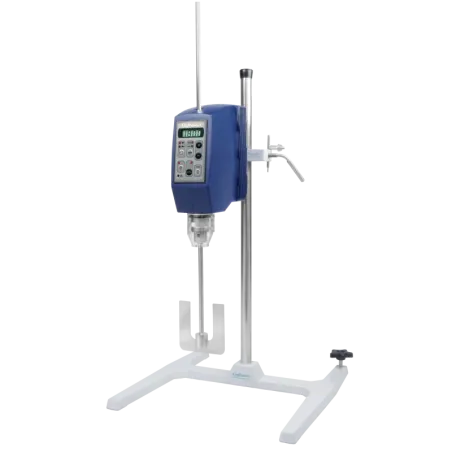

Caframo Heavy-Duty All-Purpose Stirrer
$1,587.00
Heavy-duty overhead stirrer features digital display of speed and torque, adjustable chuck up to 10 mm (⅜”), quiet and maintenance free. Available in three configurations: Universal 30 - 3000 rpm, Ultra Torque 12 - 1800 rpm, and Ultra Speed 40 - 6000 rpm.
*Shaft, Blade and Stand Sold Separately
Recommended accessories
Stirrer Stand

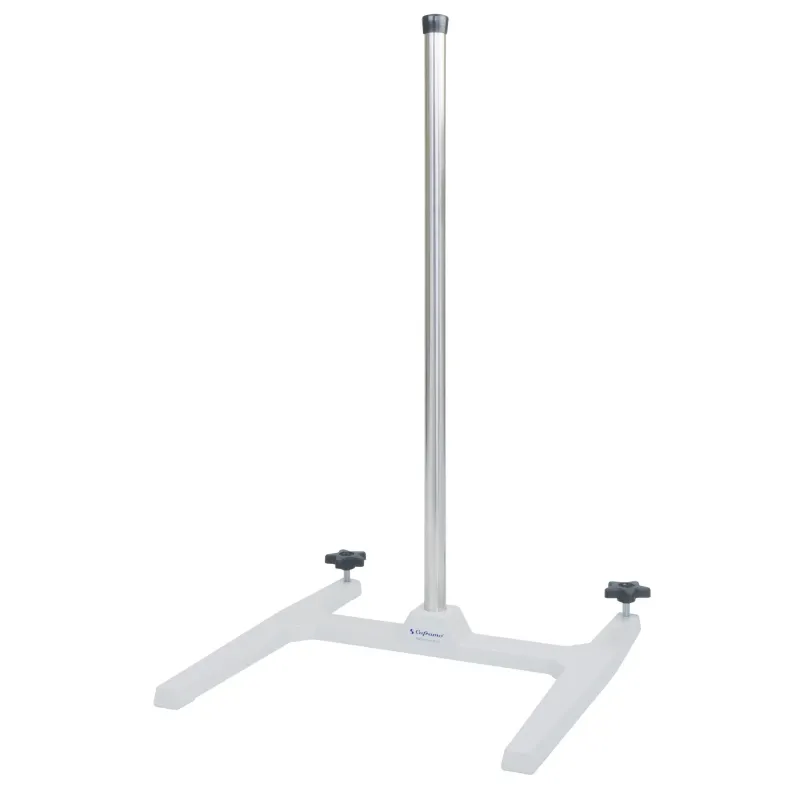

  Caframo Stand - Cast zinc-aluminum epoxy coated base and 304 SS rod | Caframo A110 Stirrer Stand $330.00 |
Stirrer Clamp

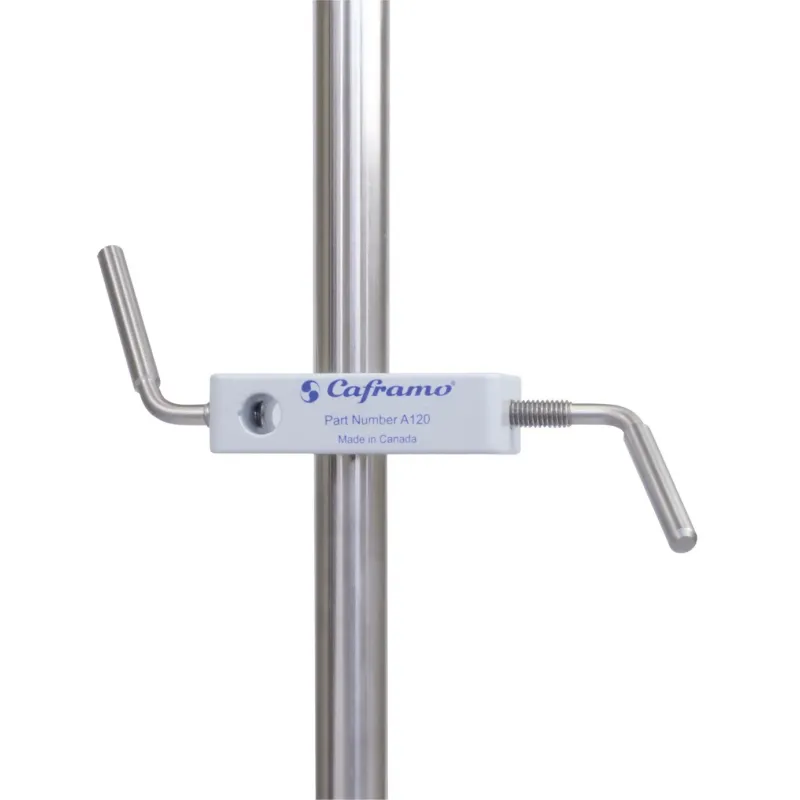

  Caframo Clamp - accepts 1/2 in support rod - 9/16 to 1 3/16 in stand rod cast zinc-aluminum epoxy coated | Caframo A120 Clamp for 1/2 in support rod $117.00 | |
  Caframo Clamp - accepts 5/8 in support rod - 9/16 to 1 3/16 in stand rod cast zinc-aluminum epoxy coated | Caframo A122 Clamp for 5/8 in support rod $136.00 |
Stirrer Shaft

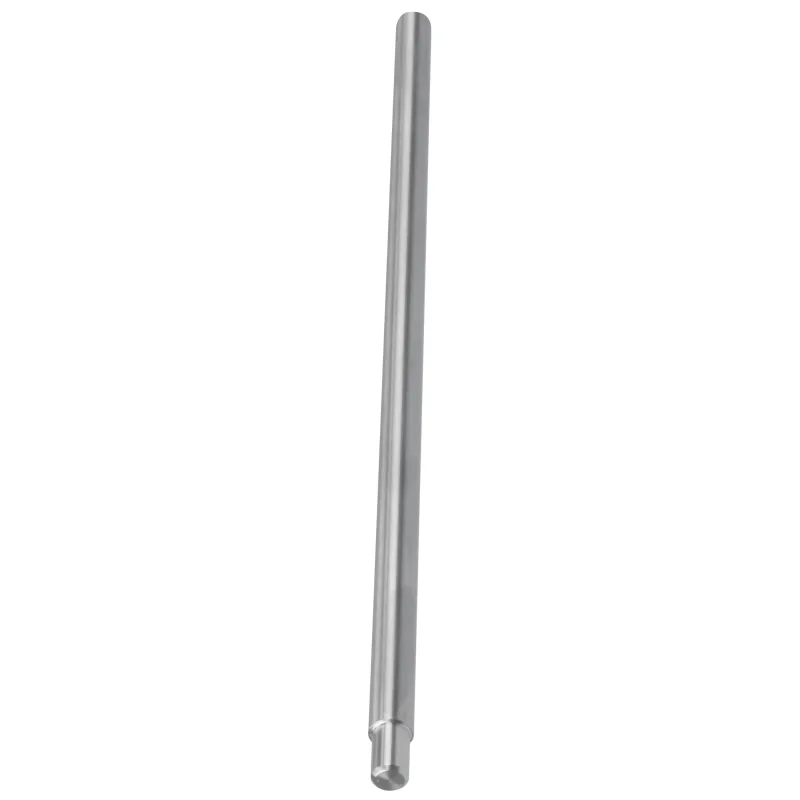

  Caframo stainless steel shaft for impeller blades | Caframo Lab Shaft $77.00 | |

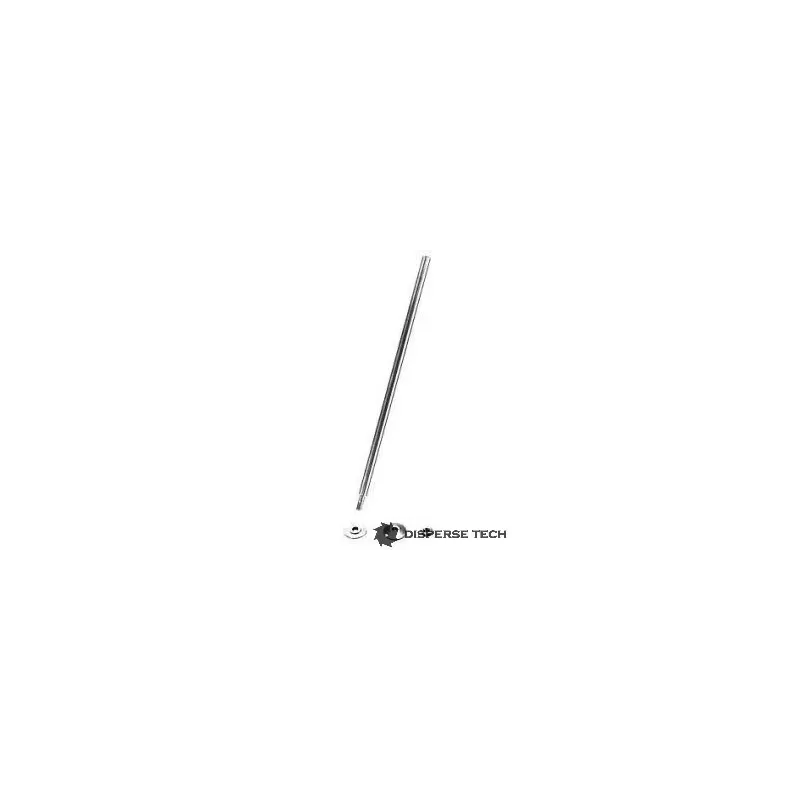

  Lab Dispersion Shafts are designed for chucks mounting or are for use with lab air motors with sleeve attachments. The shaft is supplied with an adaptor for blades with a 1/2" center bore. Shafts over 1/2" diameter are machined to for use with a 1/2" chuck. WARNING: Shaft may bend if blade is not immersed in fluid when mixer is turned on. | Stainless Steel Lab Dispersion Shaft $85.00 |
Caframo’s heavy-duty stirrers are designed and engineered specifically to meet the continuous demands of heavy industrial use. The heart of the BDC line is the high-performance Brushless Direct Current (BDC) motor. A unique two-speed transmission provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance-free, and ideal for continuous use.
| Speed Range 1 | Speed Range 2 | |||||
|---|---|---|---|---|---|---|
| Model | HP | rpm | Peak torque | rpm | Peak torque | |
| Utlra Torque | BDC1850 | 1/5 | 12-350 | 50 in·lbs | 124-1800 | 10 in·lbs |
| Universal | BDC3030 | 1/5 | 20-584 | 30 in·lbs | 206-3000 | 6 in·lbs |
| Ultra Speed | BDC6015 | 1/5 | 40-1168 | 15 in·lbs | 412-6000 | 3 in·lbs |
Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish, and German), calibration certificate, and a three-year warranty. Expect to be impressed!
BDC6015
Heavy-duty overhead stirrer features digital display of speed and torque, adjustable chuck up to 10 mm (⅜”), quiet and maintenance free. Available in three configurations: Universal 30 - 3000 rpm, Ultra Torque 12 - 1800 rpm, and Ultra Speed 40 - 6000 rpm.
*Shaft, Blade and Stand Sold Separately
