    CMC Supermill PLUS

    $0.00

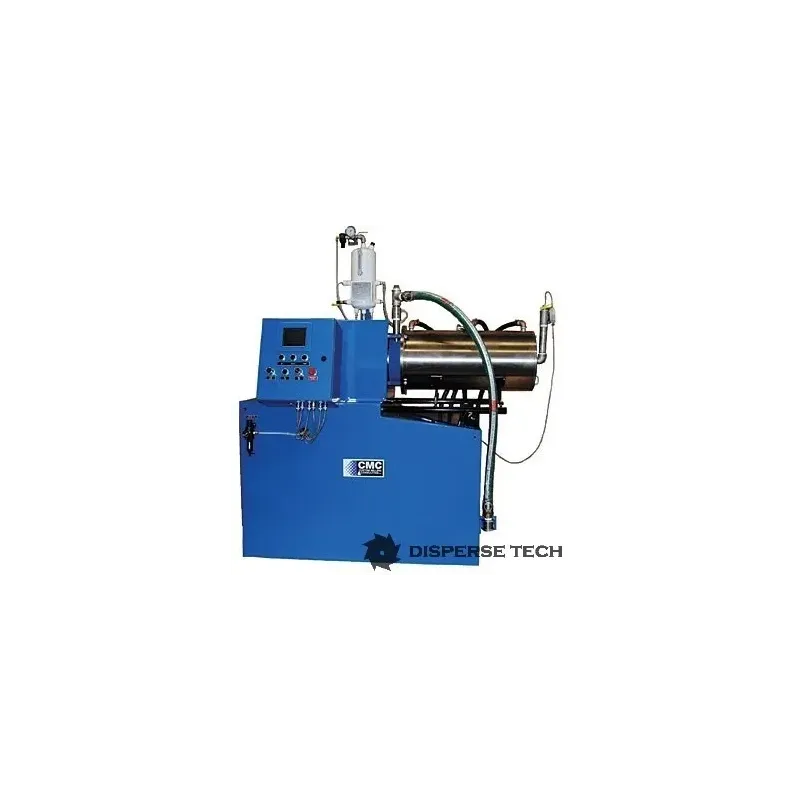

    The CMC Supermill PLUS horizontal media mill is the latest adaption of a proven design that dates back to the late 1970s.

    Volume
    Quantity

    The CMC Supermill PLUS horizontal media mill is the latest adaption of a proven design that dates back to the late 1970s. The need for finer particle size and higher quality dispersions in wet grinding has created many challenges for today's manufacturers. CMC has met these custom processing challenges for particle size reduction with its Supermill PLUS media mill. Equipped with the latest milling technology and innovative design features, this media mill offers efficiency, flexibility, and economy for the most demanding applications. The Supermill PLUS media mill is offered in a variety of sizes and materials of construction. Manufactured in Fleetwood, Pennsylvania USA, this media mill is one of the true workhorses offered in the industry of grinding mills today! Come visit our Technology Center and test the Supermill PLUS media mill yourself.

    ModelsBatch Size GallonsMain Motor (HP)LengthLength w/ Chamber OpenWidthHeightWeight (lbs)
    SMP-510-5015/2049.5"65.75"36.25"78.5"2,300
    SMP-1530-15025/3056.25"75.25"36.25"78.5"2,500
    SMP-45100-30050/6076.75"108.5"44.25"81"3,200
    SMP-60150-50060/7578.5"119.75"46.25"83.25"4,200
    SMP-90200-60075/10082.25"123.75"46.25"83.25"4,400
    SMP-120300-1500100/12598.75"154.5"54"90"5,500
    SMP-200500-2500125/150106.75"161.5"54"90"5,800
    SMP-600Contact Factory200/250144.75"218.75"91.5"78.25"Contact Factory
    SMP-15

    Download

    CMC Laboratory SuperMill Plus

    CMC’s Pilot Plant Supermill Plus is a lab size version of our full size horizontal media mill. The 1.5 liter milling machine can be used for formulation development or for small batch processing. It can process batches from 2 gallons to 30 gallons.

    Download (197.35k)

    CMC Supermill Plus

    The Supermill Plus media mill is the latest in horizontal media milling technology. Today’s demanding applications require ultrafine, microscopic particle sizes. With its fl exible design the Supermill Plus® is able to process a wide variety of products and handle a range of viscosities. We offer a durable, efficient and maintenance friendly machine to incorporate into your production.

    Download (305.74k)
