    Tangential - Paddles and Anchors
    search
    • U022- Anchor Blade 2 x 2 in - welded to 16 x 5/16 in shaft - 316 SS electropolished
    • Caframo - A183 - PTFE Anchor Blade 3 1/8 in dia - welded to 15 3/4 x 5/16 in shaft
    • U044 - Anchor Blade 4 x 4 in - welded to 36 x 3/8 in shaft - 316 SS electropolished
    • U044SW - Anchor Blade with Sweep - 316 SS electropolished
    • U055 - Anchor Blade 5 x 5 in - welded to 36 x 3/8 in shaft - 316 SS electropolished
    • U510 - Anchor Blade 5 x 10 in - welded to 36 x 3/8 in shaft - 316 SS electropolished
    • Caframo - A250 - Compact Square Paddle Blade 1 1/2 in dia - welded to 15 3/4 x 5/16 in shaft - 316 SS electropolished
    • Caframo -A150 - Square Paddle Blade 2.8 x 2.8 in - welded to 15 3/4 x 5/16 in shaft - 316 SS electropolished
    • Tangential - Paddles and Anchors

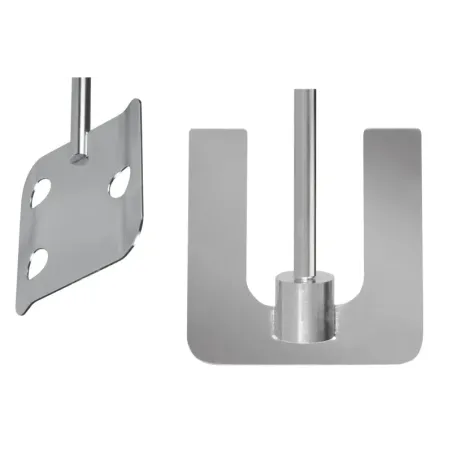

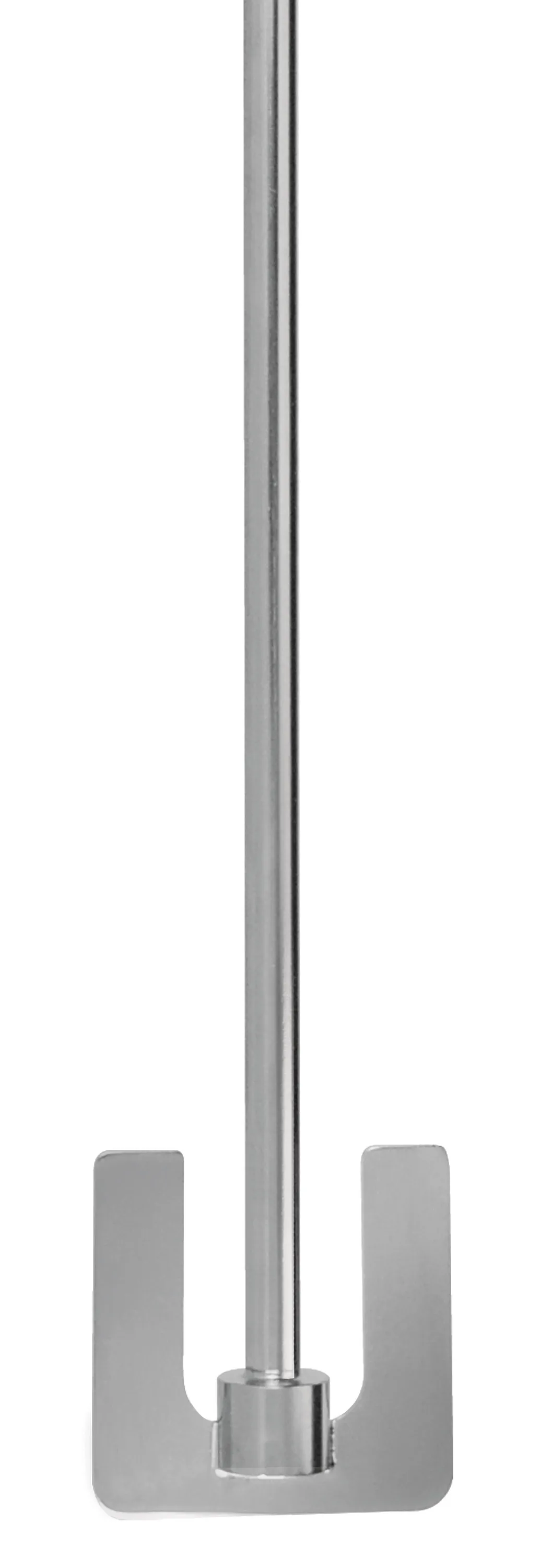

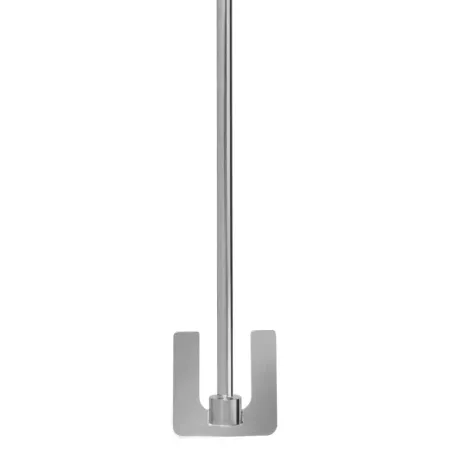

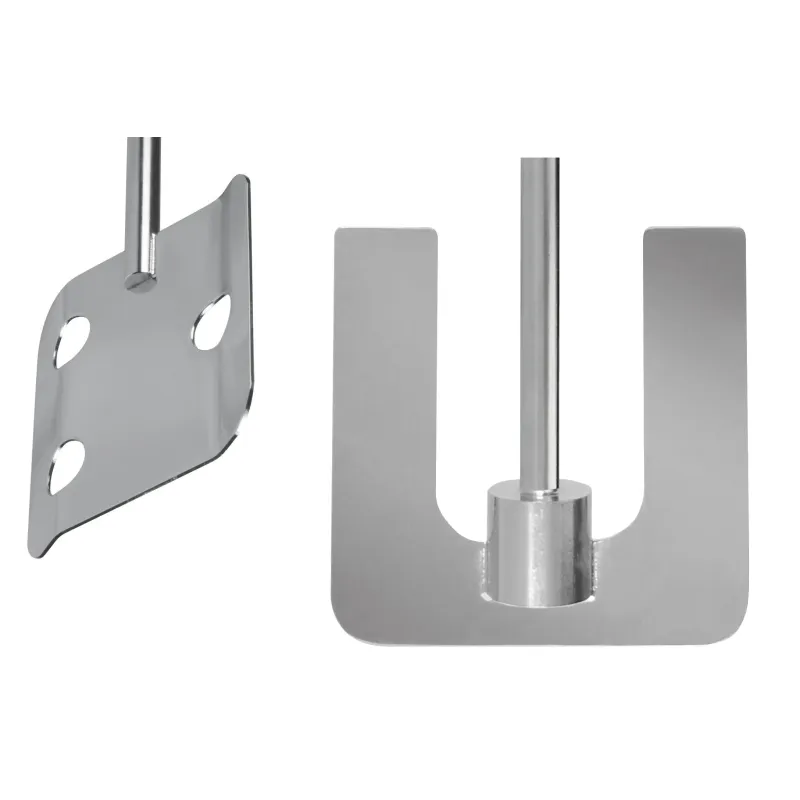

    Caframo Tangential Flow Impeller

    $0.00

    Caframo Tangential Flow Lab Impellers are effective for low speed, high viscosity mixing. These blades have more surface area to contact the thick product being mixed. Because thicker mixtures are usually mixed more slowly a blade diameter closer to the full diameter of the vessel can be used so that the product close to the edge of the vessel is mixed.  Available in both anchor and paddle styles.

    Diameter
    Quantity

    Request More Info

    Request Product Info

    These paddles have more surface area to contact the thick product being mixed. Because thicker mixtures are usually mixed more slowly a paddle diameter closer to the full diameter of the vessel can be used so that the product close to the edge of the vessel is mixed.

    Mfr. No.DiameterHeightLengthShaft DStyle
    U02222165/16anchor
    A1833.12515.755/16anchor
    U04444363/8anchor
    U05555363/8anchor
    U044SW5.755363/8anchor
    U510105363/8anchor
    A2501.515.755/16paddle
    A1502.815.755/16paddle
