Model G Gear Drive Electric Mixer
$2,054.00

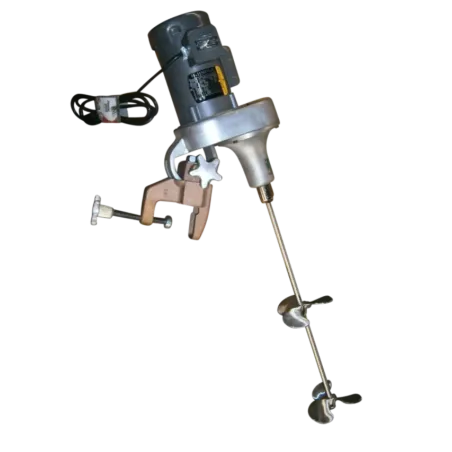

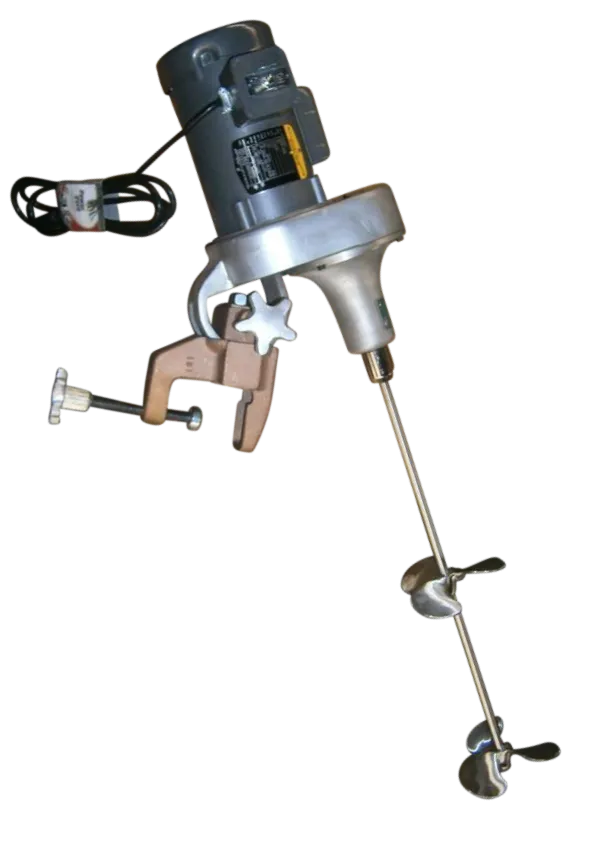

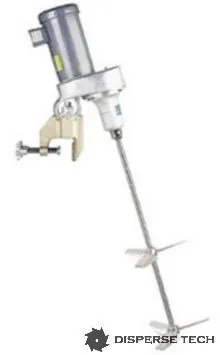

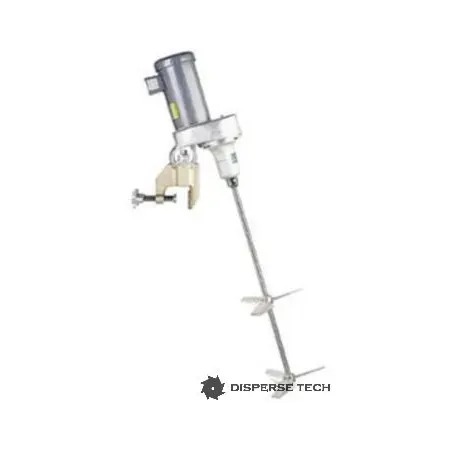

Mix-Mor Incorporated Model G Portable Gear Drive Electric Mixer
MixMor Offers high quality, heavy duty portable mixers ranging from 1/4 to 5 horsepower. With shaft diameters from 5/8" through 1-1/4", we can handle even the toughest products.
* see table below for specifications on the individual mixers.
Mix-Mor Incorporated Model G Portable Gear Drive Electric Mixer
MixMor heavy-duty gear drive mixers use standard NEMA C face motors mounted on aluminum gear drive housings. Housings enclose helical gears with a double sealed ball bearing with upper and lower seals for or additional protection. Reducers are grease lubricated for life. Mixer mounts with a heavy-duty brass clamp with handwheels for fastening, thus eliminating the need for special tools or wrenches. The clamp and drive housing have a ball and socket assembly to allow 360 rotation on the horizontal plane and 100 on the vertical plane for optimum shaft angle.
SPECIFICATIONS
| Model | Power Source | Mixer | Shaft | Impeller Quantity / Diameter |
weight | ||
|---|---|---|---|---|---|---|---|
| hp | rpm | Single | Dual | ||||
| G-14 | 115/230 Volt,1φ,60hz | ¼ | 420 | 5/8" x 36" | 8" | 7" | 45 |
| G-13 | 115/230 Volt,1φ,60hz | ⅓ | 420 | 5/8" x 36" | 9" | 8" | 47 |
| G-12 | 115/230 Volt,1φ,60hz | ½ | 420 | 7/8" x 48" | 11" | 10" | 95 |
| G-34 | 115/230 Volt,1φ,60hz | ¾ | 420 | 7/8" x 48" | 12" | 11" | 100 |
| G-11 | 230/460 Volt,3φ,60hz | 1 | 420 | 7/8" x 60" | 13" | 12" | 105 |
| G-15 | 230/460 Volt,3φ,60hz | 1½ | 420 | 7/8" x 60" | 14" | 13" | 109 |
| G-2 | 230/460 Volt,3φ,60hz | 2 | 420 | 7/8" x 60" | 15" | 14" | 120 |
| G-3 | 230/460 Volt,3φ,60hz | 3 | 420 | 1-1/4" x 60" | 16" | 15" | 140 |
| G-5 | 230/460 Volt,3φ,60hz | 5 | 420 | 1-1/4" x 60" | 16" | 15" | 165 |
Many options are available:
- Motors: Standard, commercially available, NEMA C face motors in all enclosures and power requirements. Including:
- Explosion proof
- Wash Down Duty
- Variable Speed Drives: Available with Inverter, AC variable frequency or Accumix® SCR/DC drives in NEMA 1 or 4 enclosures.
- Housings: Aluminum alloy housings with heavy duty, corrosion resistant brass clamps. Available in stainless steel or other alloys.
- Impeller Speeds: Gear Drive 230, 290, 350 or 420 rpm.
- All Stainless Steel Mixers
- Coated Shaft and Impellers
- Sanitary Finishes
- Shaft and Impellers in other Alloys
- Stainless Steel Motors
- USDA Accepted Models
- Impellers: Marine Props, hydrofoils, pitched and flat blade turbines, and dispersion blades are available.
Contact us with your requirements, we would be happy to prepare a suitable design for your application.
